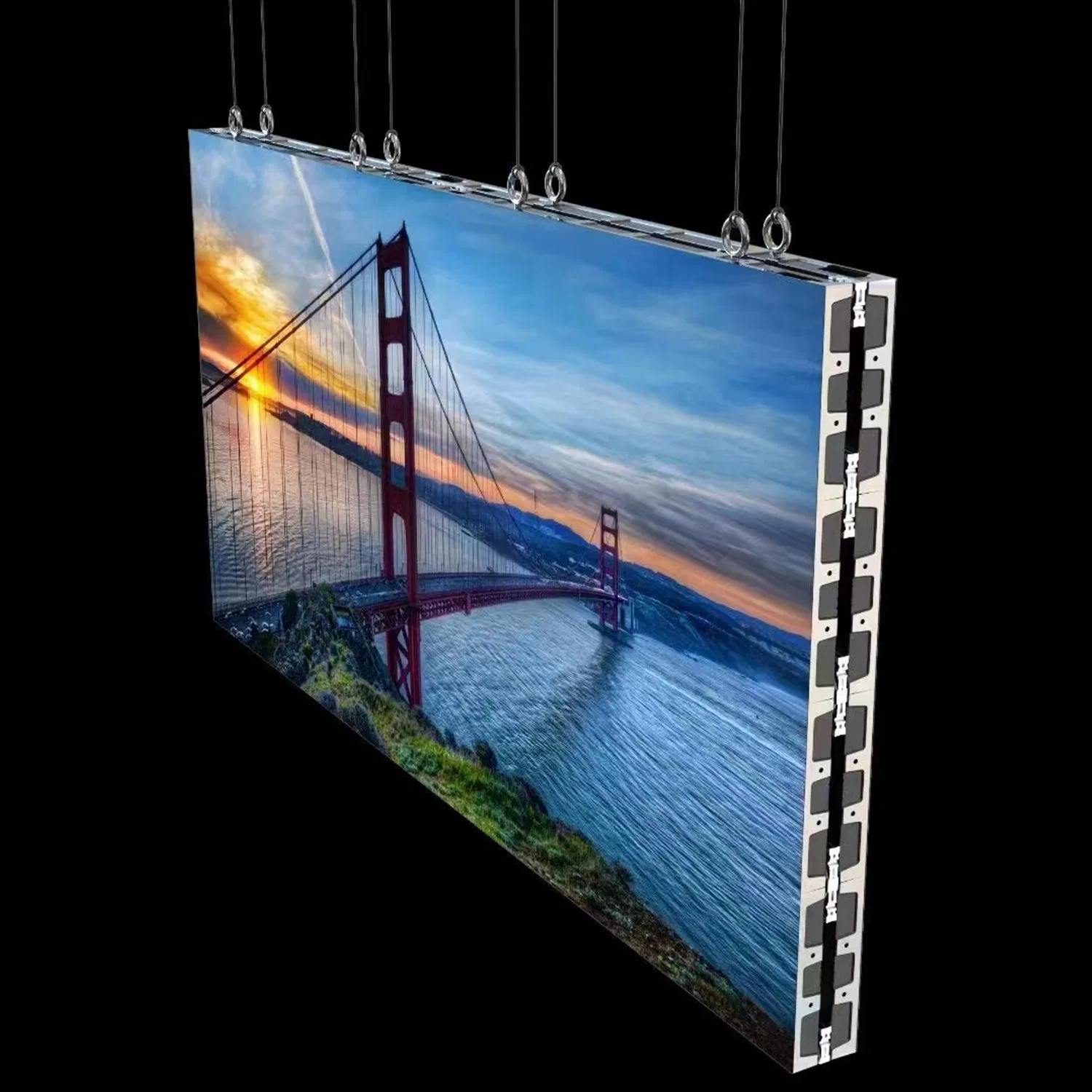

Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
1 / 5
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display
Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display

Full Color HD 4K SMD Small Pixel Pitch P1.56 P1.95 P2.6 P2.97 P3.91 Indoor LED Advertising Billboard Video Wall Panel Screen Display

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.LSF
Pixel Pitch1.95mm
Pixel Configuration1R,1G,1B
Pixel Density409600 DOT/M2
Scanning Mode1/40 Scan
System Operating PlatformWIN XP
Display TypeLED Video Display
ApplicationStage Performance, Advertising, Shopping Guide, Rental
IP RatingIP30
CertificationCE, ETL, FCC
Cabinet MaterialDie Cast Aluminum
Cabinet Size1000mm*250mm
MaintenanceFront Service/Back Service
Refresh Rate>3840Hz
Production Capacity4000 M2/Month
Packaging & Delivery
Package Size100.00cm * 25.00cm * 4.00cm
Package Gross Weight5.500kg
Product Features
  • Lightweight and ultra-thin design for sleek installation.
  • Supports arbitrary signal line direction to meet various cabinet arrangements.
  • Professional video processor support (AV, DP, VGA, DVI, HDMI, SDI, etc.).
  • 256-level brightness and white balance custom adjustment.
  • High refresh rate to eliminate flickering during professional shooting.

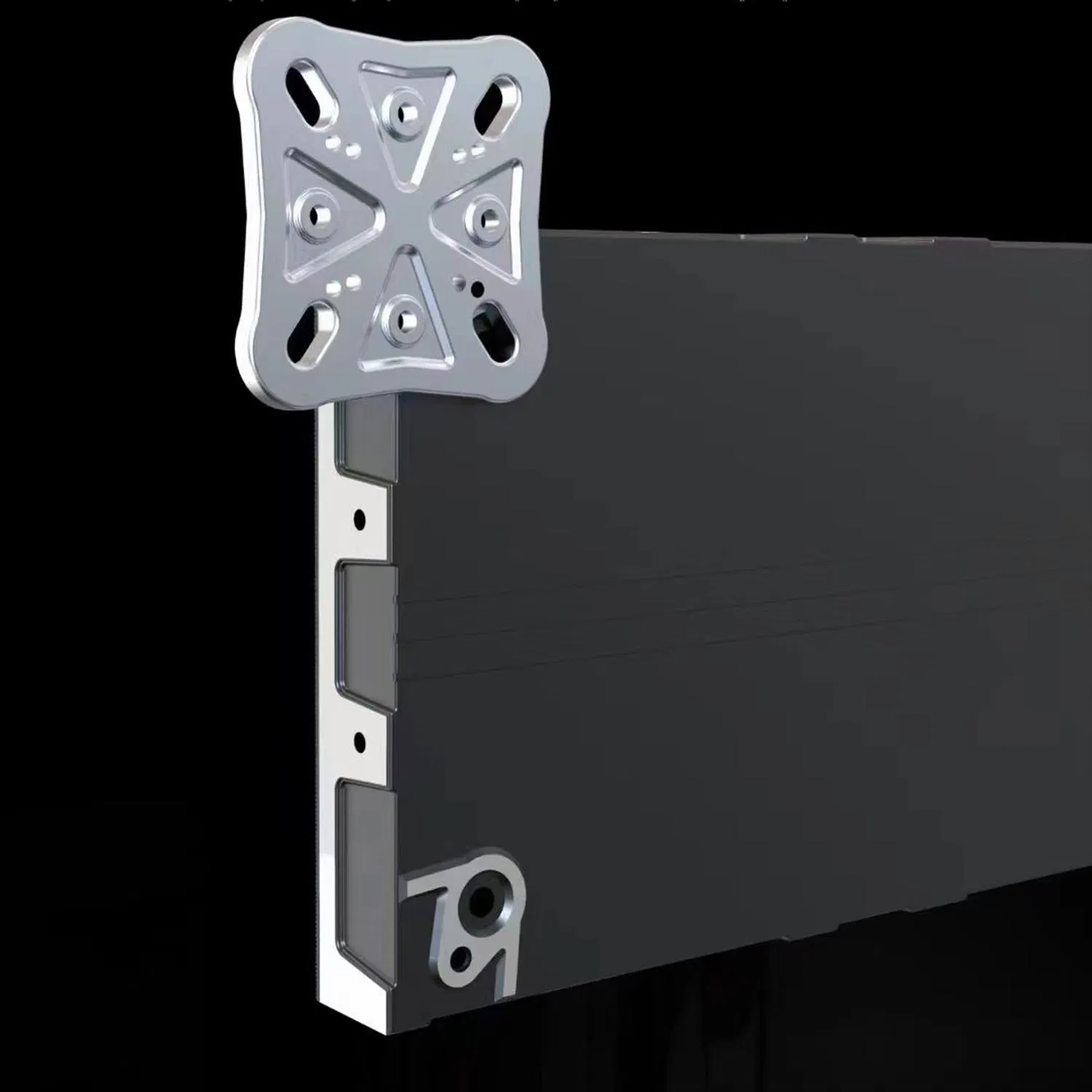

  • Magnetic module with front service for rapid maintenance.

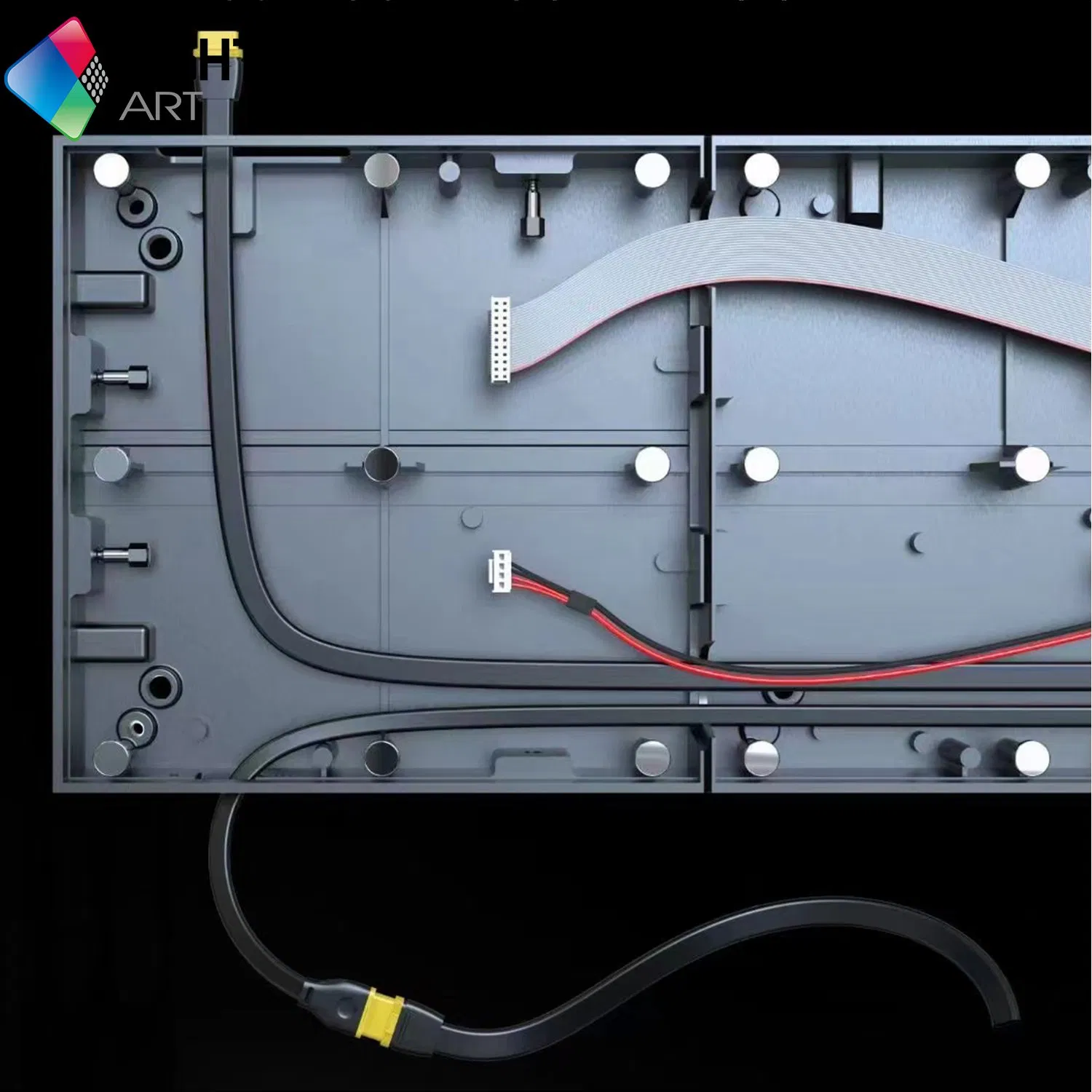

  • Integrated connection system tested for up to 100,000 effective insertions.
Available Models: Indoor P1.56, P1.95, P2.6, P2.97, P3.91

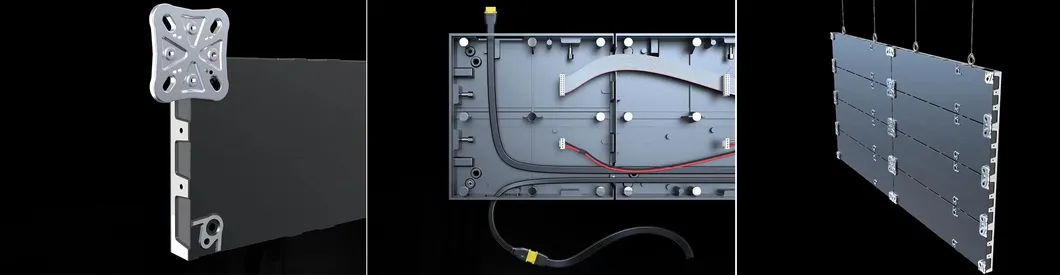

Indoor LED Display

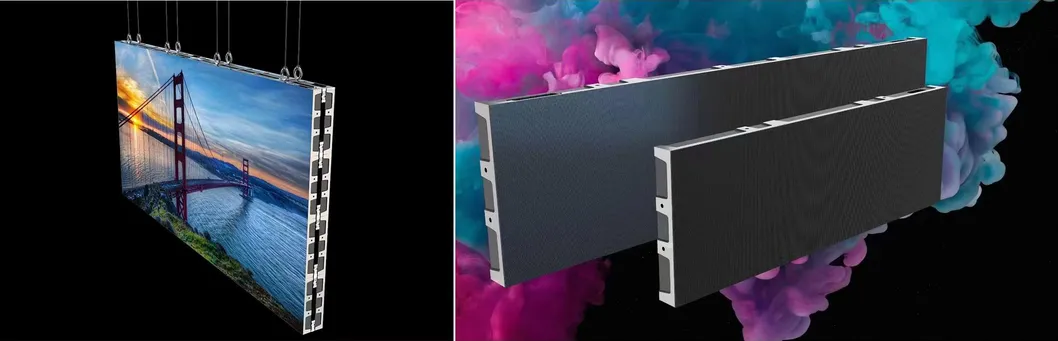

LED Video Wall Panel
Specifications & Technical Details

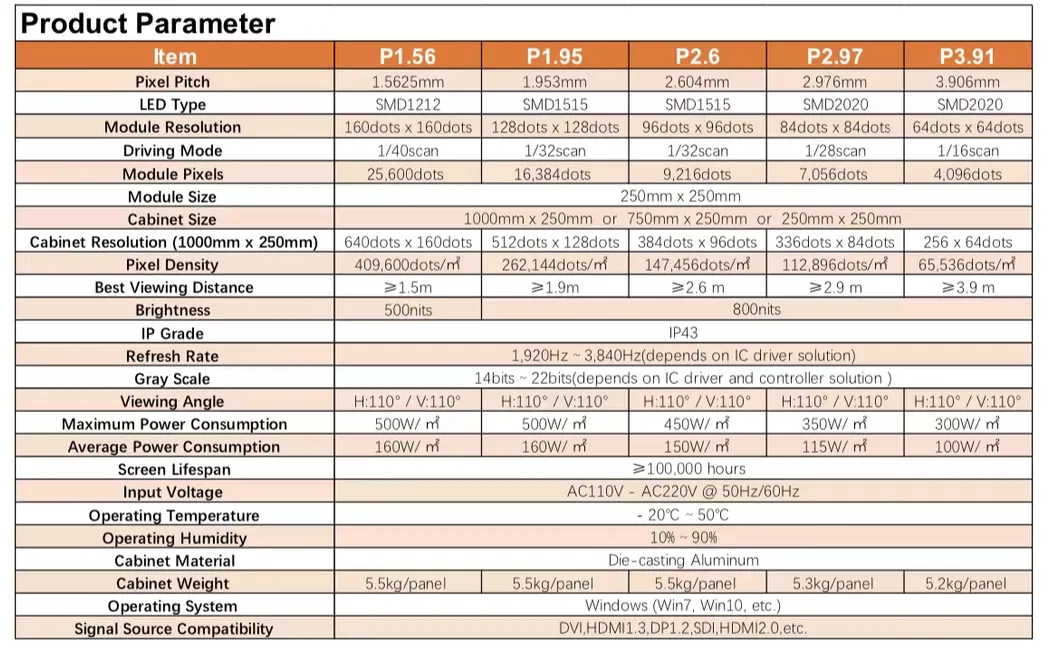

LED Specification Chart
Quality Aging Test

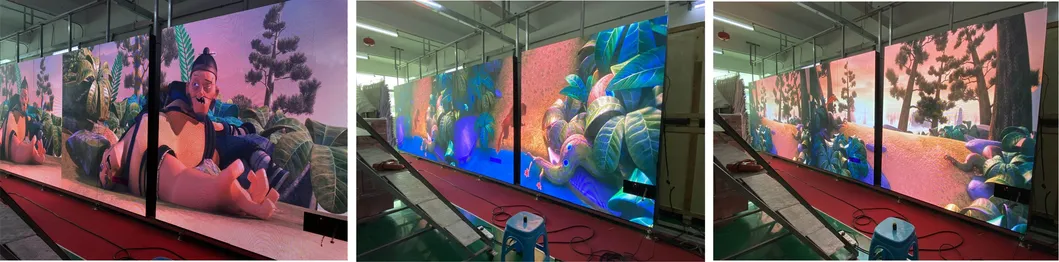

Aging Test 1

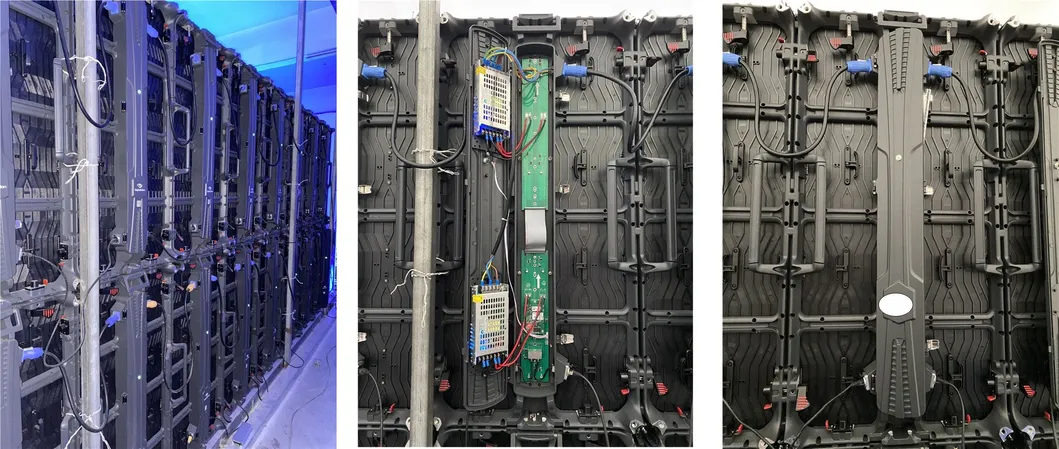

Aging Test 2
Project Cases

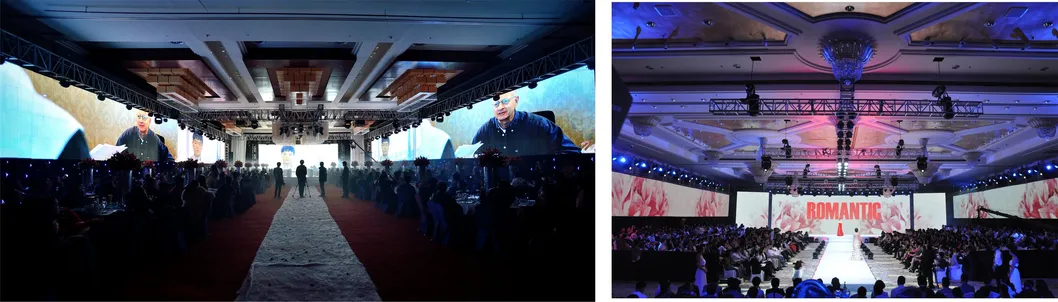

Project Case 1

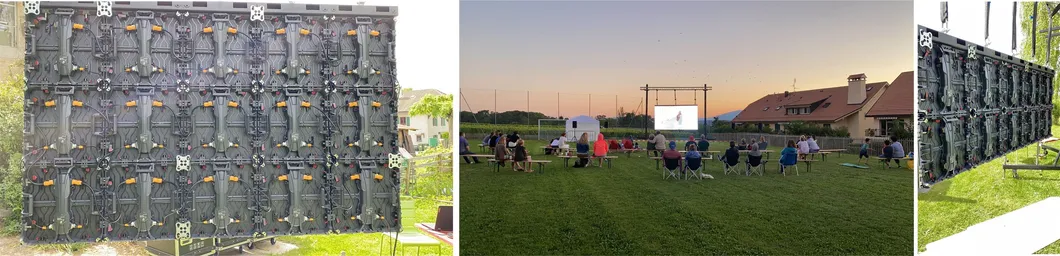

Project Case 2
Delivery & Service
  • Production time: Approx 25 days (including aging test).
  • Payment terms: 30% advance, 70% before shipping.
  • Trade terms: EXW, FOB, CIF, DDU, DDP.
  • Two to 5 years warranty depending on product type.
  • 24 hours online service and lifetime support.

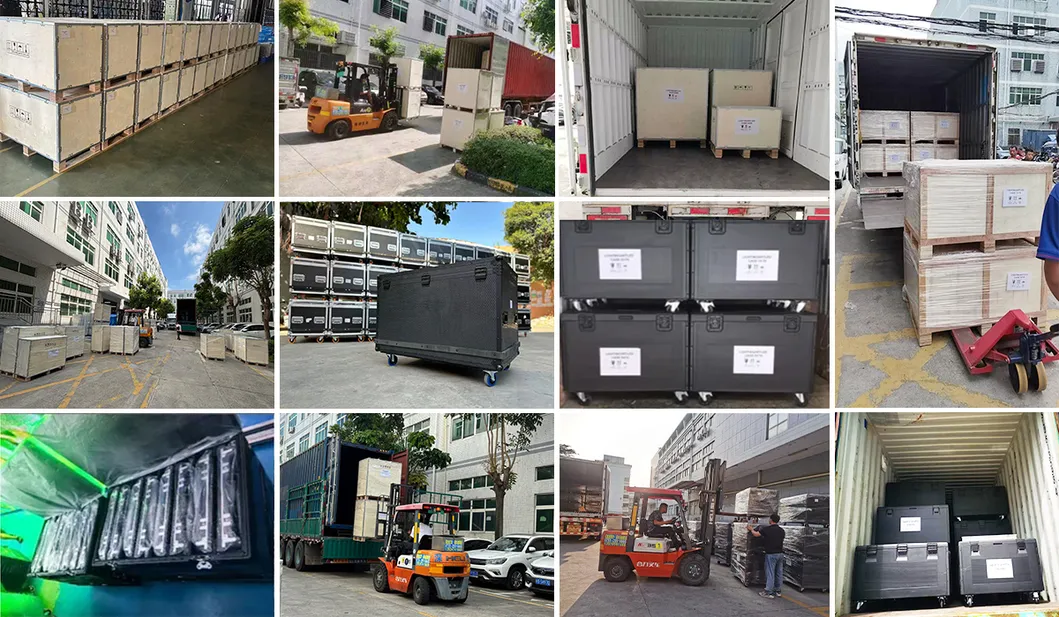

Flight Case Packaging
Certifications & Factory Strength

We are an original factory with 9 years of expertise in high-end LED display design and manufacturing. Our team provides full-project solutions including accessories, software, and technical guidance.

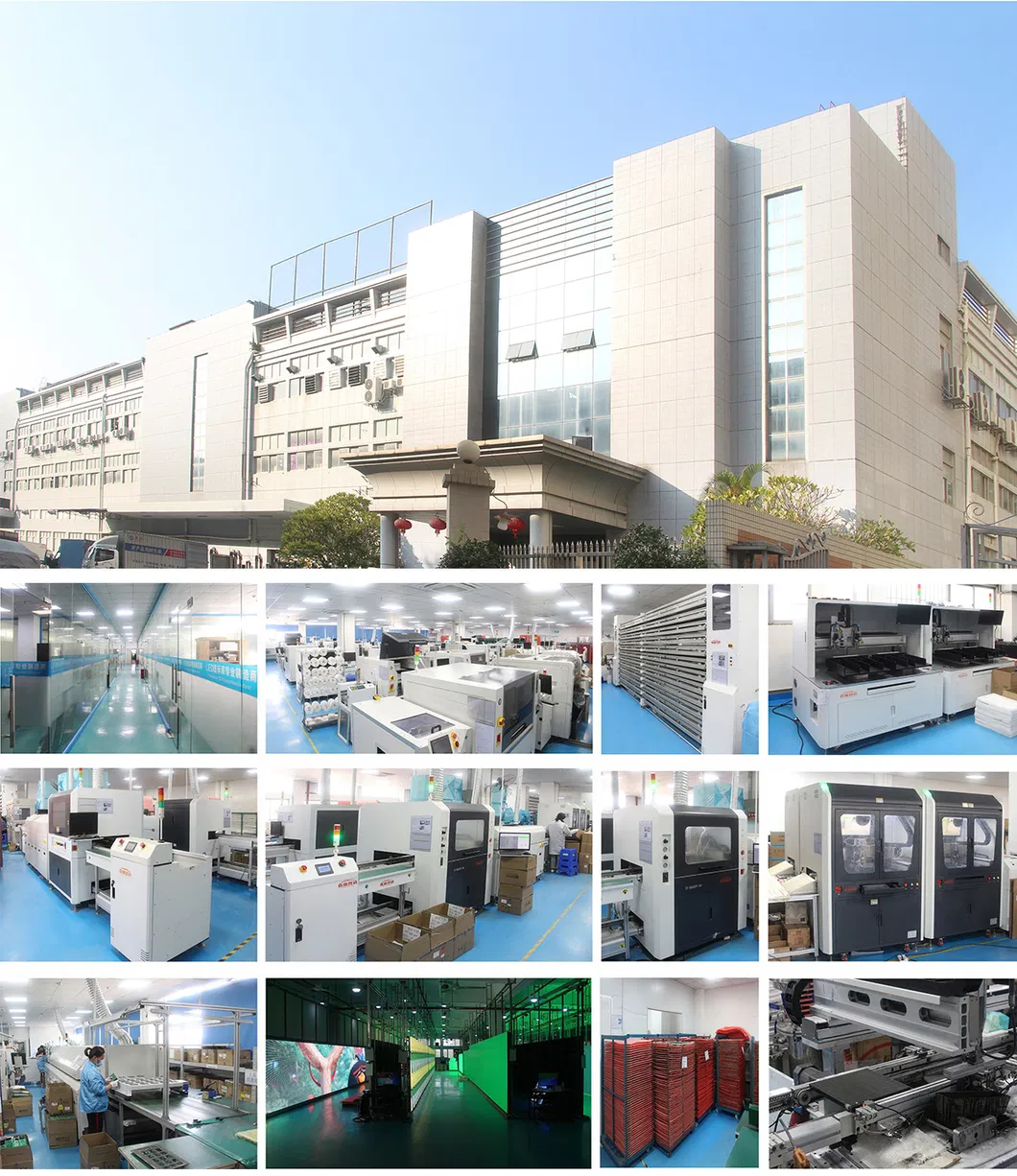

Factory Overview

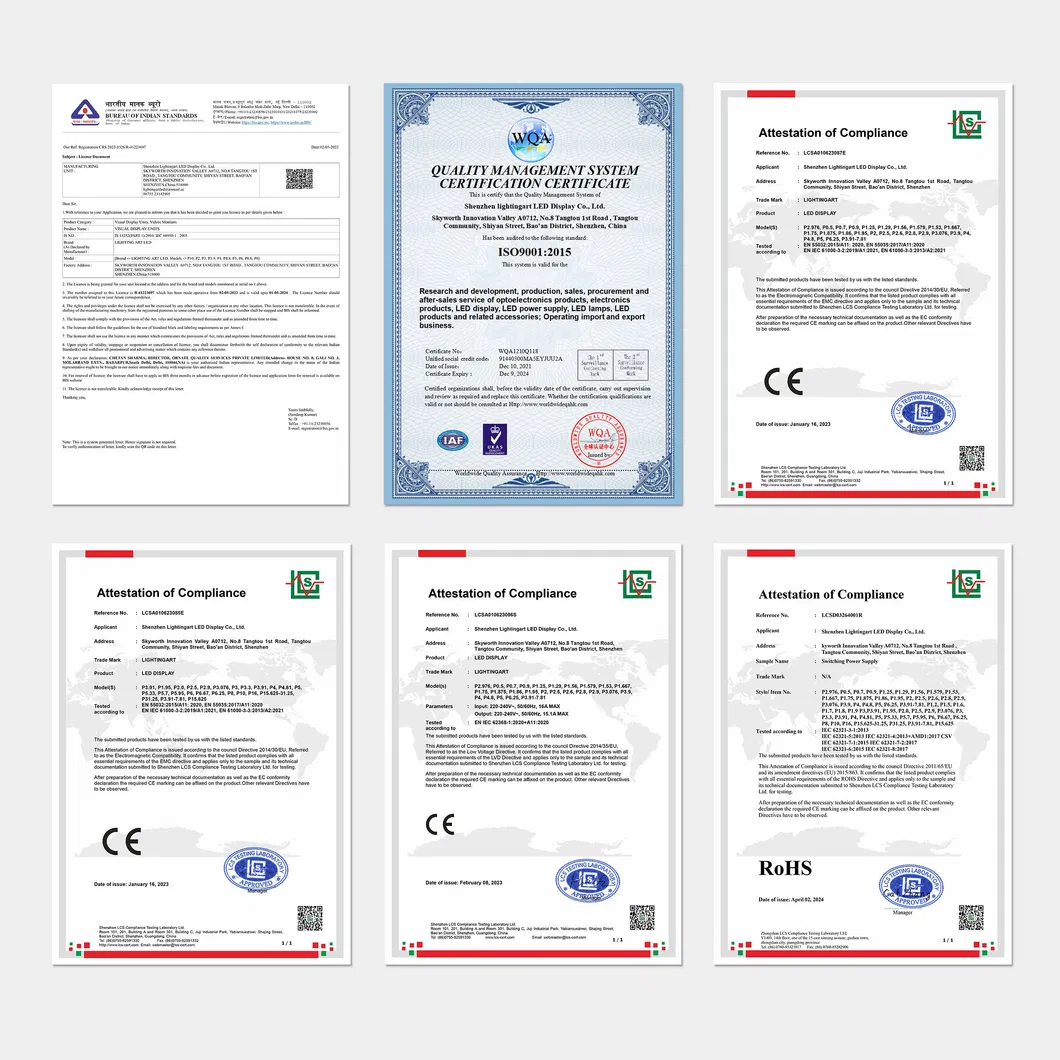

Quality Certificates
Exhibition Presence
Frequently Asked Questions
What is the maintenance method for this LED screen?
The LSF series supports both front and back service. It features magnetic modules for quick and easy replacement, significantly saving maintenance time.
Can this display handle professional video filming?
Yes. With a refresh rate exceeding 3840Hz and high gray levels, it effectively avoids flickering and ghosting, making it ideal for stage performances and studio shooting.
How long is the production and testing period?
The standard production time for orders up to 200 m² is approximately 25 days, which includes a rigorous aging test in our factory to ensure stability.
What accessories are provided for a full project?
We provide a complete solution including hanging bars, sending cards, video processors, control software, flight cases, power and data cables, and module masks.
Does the screen support custom configurations?
Yes, we support white balance custom adjustment and 256-level brightness control, allowing different batches of displays to be mixed seamlessly while maintaining color consistency.
What kind of warranty and after-sales service do you offer?
We offer a 2 to 5-year warranty. We provide 24/7 online support, depot repair services, and can dispatch experienced engineers for on-site technical assistance if required.
