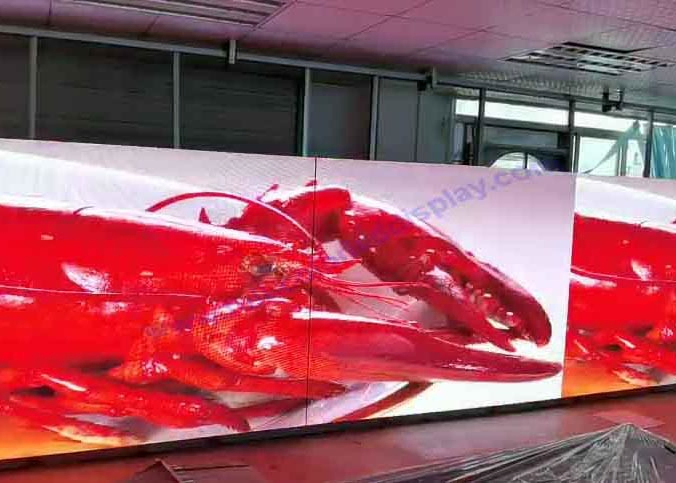

12.8kg Curved LED Display Hire, LED Rental Screen Easy Maintenance Poster Flexible Transparent Panel Video Wall Screen

1 / 5

12.8kg Curved LED Display Hire, LED Rental Screen Easy Maintenance Poster Flexible Transparent Panel Video Wall Screen

Customization:	Available
Tube Chip Color:	Full Color
Display Function:	Video Display, Image & Text Display, Text Display, Market Display

Send Inquiry

Product Description

Basic Specifications

Pixel Pitch

3mm

Pixel Configuration

1R,1G,1B

Pixel Density

111111 / M²

Scanning Mode

1/16 Scan

System Platform

Win7 XP Vista

Display Type

LED Video Display

Application

Stage, Advertising, Shopping Guide

IP Rating

IP31

Certification

CE, RoHS, CCC

LED Type

SMD2020

Viewing Angle

H:140 V:140

Module Size(mm)

192X192X13

Cabinet Size(mm)

384X384

Cabinet Material

Aluminum

Cabinet Weight

9kg

MTBF

10000h

Production Capacity

5000sq. M/Month

HS Code

8528591090

Product Description

Curved free shape ARC indoor outdoor rental led display panel screen P3.91 / P4.81 / P6.25 / P5.95.

Fast Maintenance: Front maintenance design increases efficiency by 10 times compared to traditional methods.
Flexible Design: Radian dial lock allows joining between 15 and -15 degrees for arbitrary curved shapes.
Cabinet Options: Standard design with 500x500mm (7.8kg) and 500x1000mm (12.8kg) options.
Mixed Installation: Supports simultaneous installation of both 500x500mm and 500x1000mm cabinets.
Versatile Use: Suitable for both indoor and outdoor environments.
High Performance: P5.95mm outdoor rental model features high definition and high contrast.
Cost Effective: Same cabinets can be reused for different pixel pitches by only changing modules.
Safety Features: Upgraded double safety lock design including hanging and stable side locks.
Easy Handling: Modules include a back handle for quick removal from cabinets.

Technical Parameter (P4.81)

Pixel pitch	4.81mm
LED Type	SMD2121 Black
Scan Style	1/13
Resolution	43264 pixels/sqm
Module size(mm)	250W * 250H
Panel Size(mm)	500 W * 1000 H * 60 D
Refresh rate	>1000 Hz
Brightness	>1300 Nits
Max Power/panel	600W
Weight per cabinet	About 12.8Kg
Best viewing distance	≥4.8m
Cabinet material	Die-casting aluminum
Operating temperature	-20ºC to +50ºC
Operating system	Windows 2000 / XP / 7 / 8 / 8.1

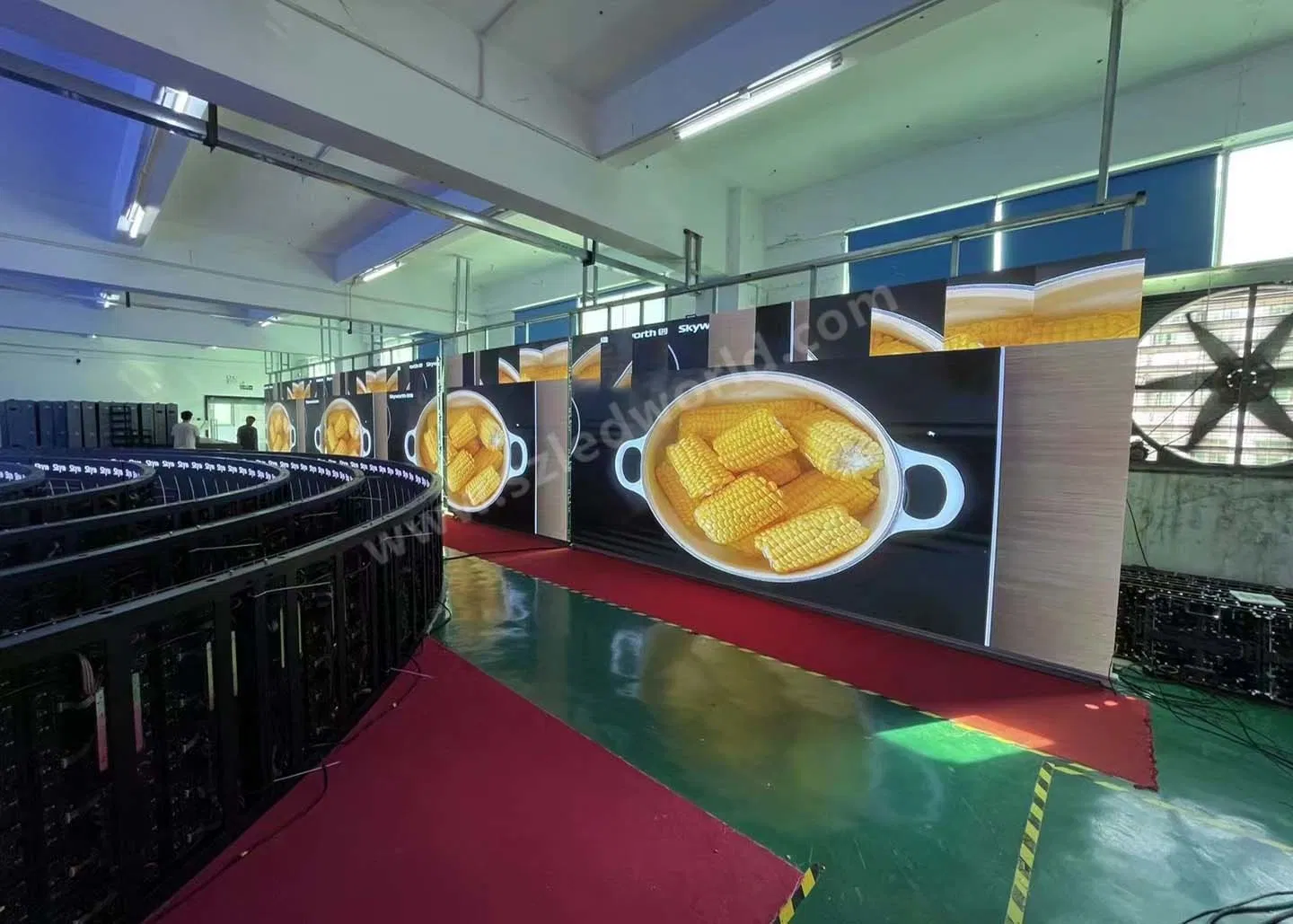

Project Showcase & Testing

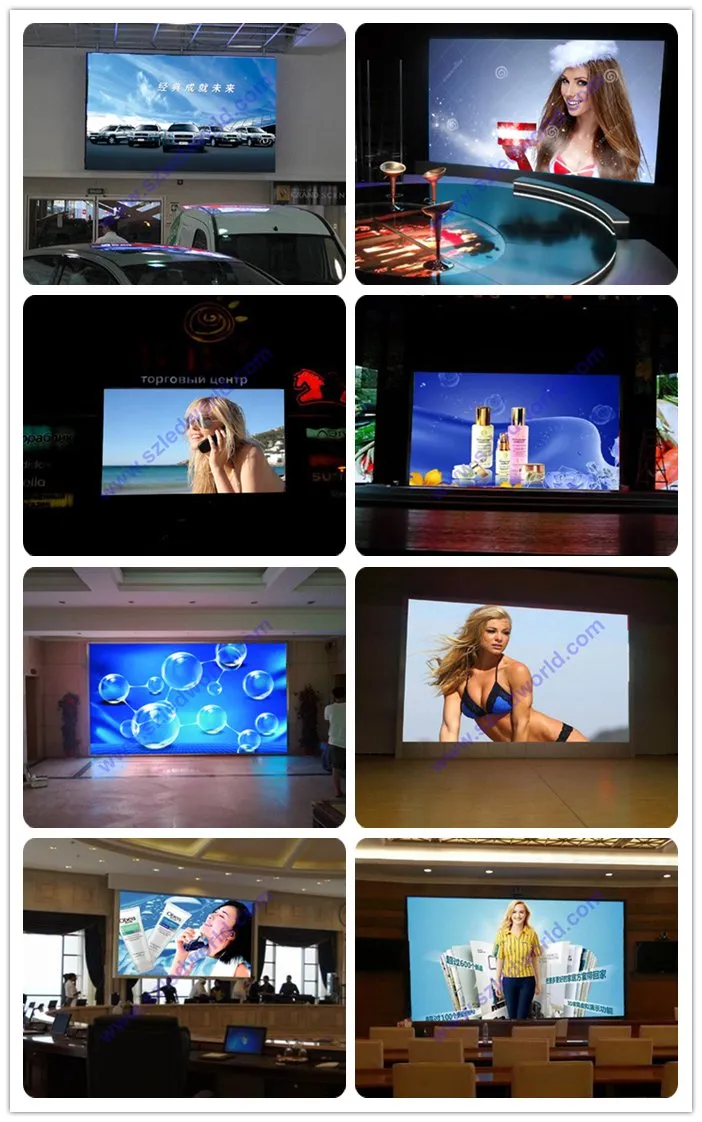

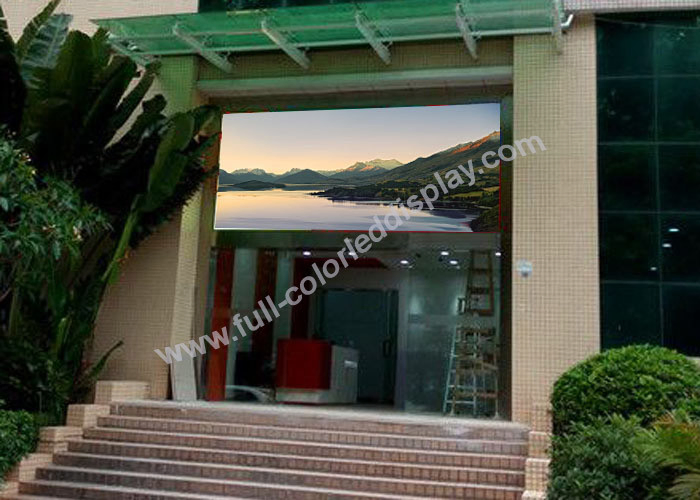

Project Case:

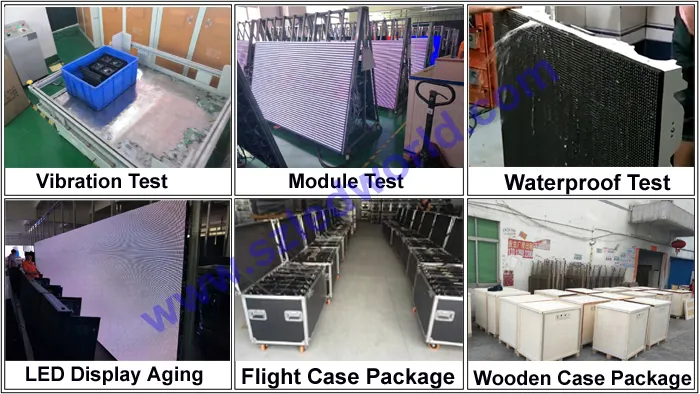

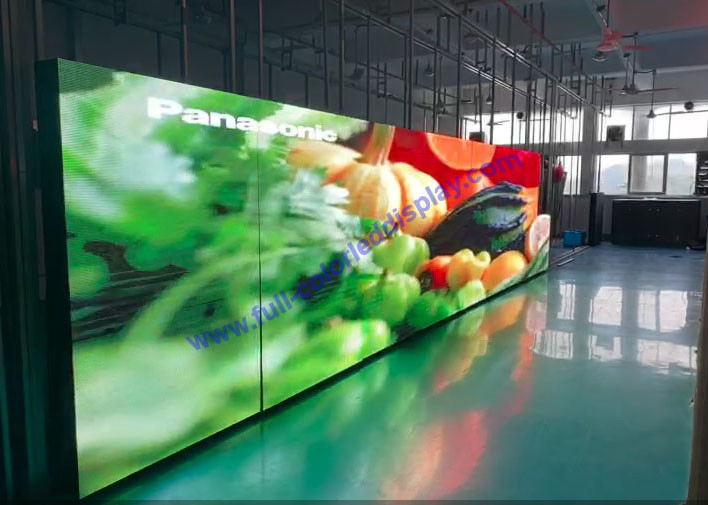

Product Testing:

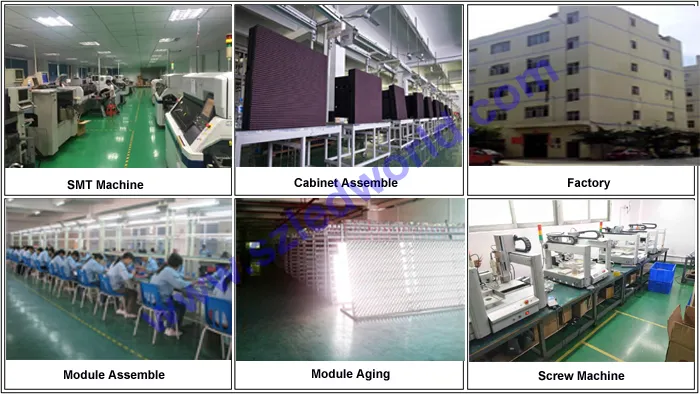

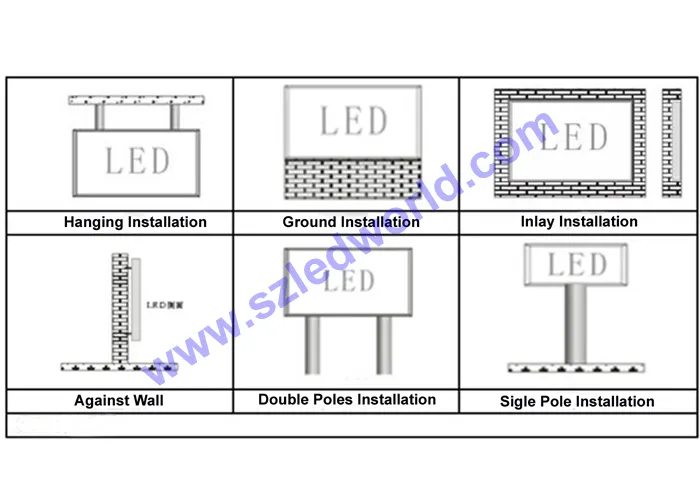

Workshop & Installation:

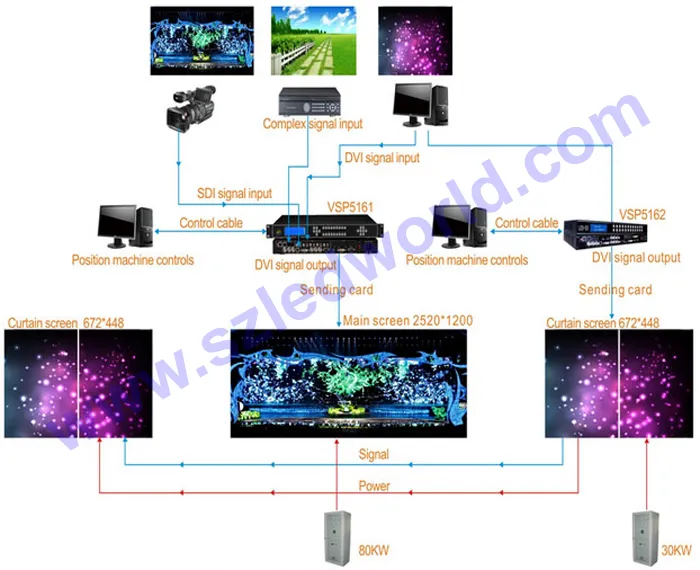

Control System:

Related Product Series:

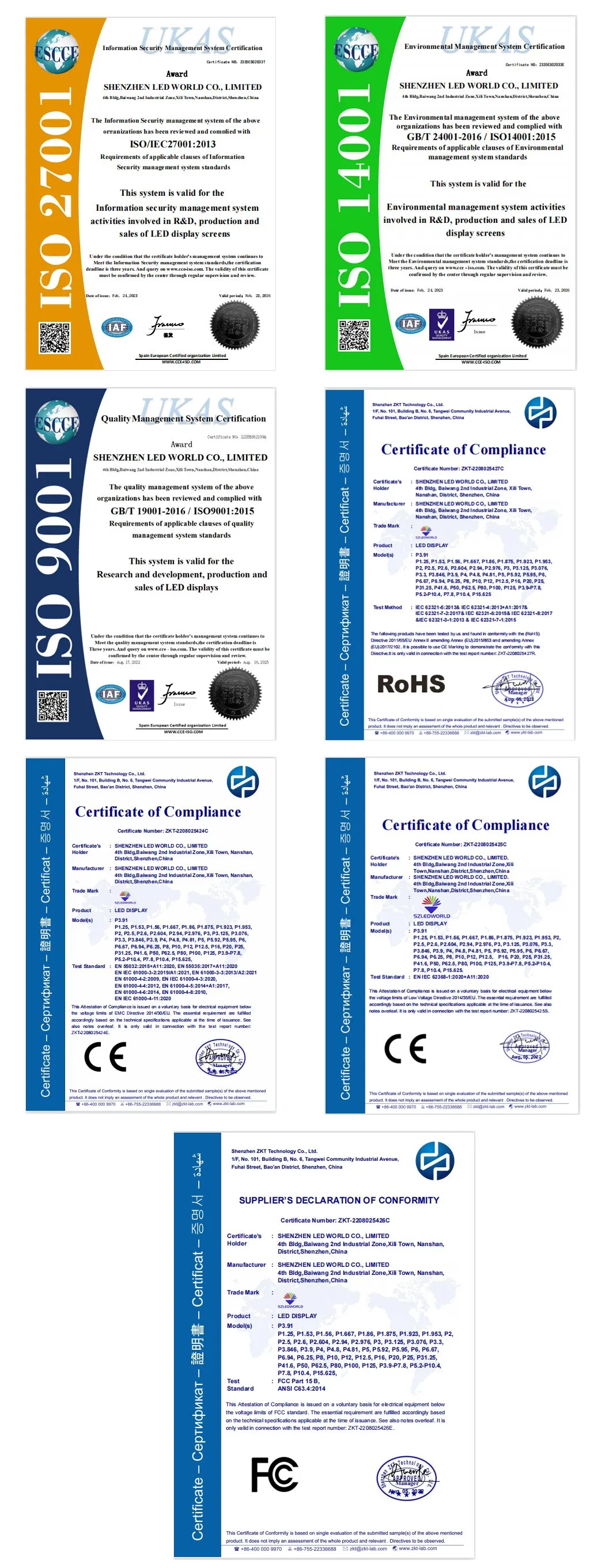

Certification

Frequently Asked Questions

What kind of LED displays do you provide?

We offer a wide range including indoor, outdoor, rental, taxi top mobile displays, LED stages, and irregular-shaped LED displays.

What is the difference between DIP and SMD?

SMD (3-in-1) uses one LED lamp per pixel containing three chips, reducing graininess and improving viewing angles. Traditional DIP uses three separate lamps per pixel. SMD is now widely used both indoors and outdoors due to improved brightness.

How long is the production lead time?

Production typically takes about 10-25 working days after order confirmation and receipt of deposit. We provide regular production updates throughout the process.

What is your monthly production capacity?

Our facilities support the production of 200,000 pieces of LED modules and 4,000 square meters of assembled LED displays per month across 10 automatic production lines.

What are the available cabinet and pixel pitch options?

We offer models ranging from P1.66 to P25. Cabinets can be standard, simple, rental-style, or customized, made from either Iron or Aluminum with options for front maintenance and special locks.

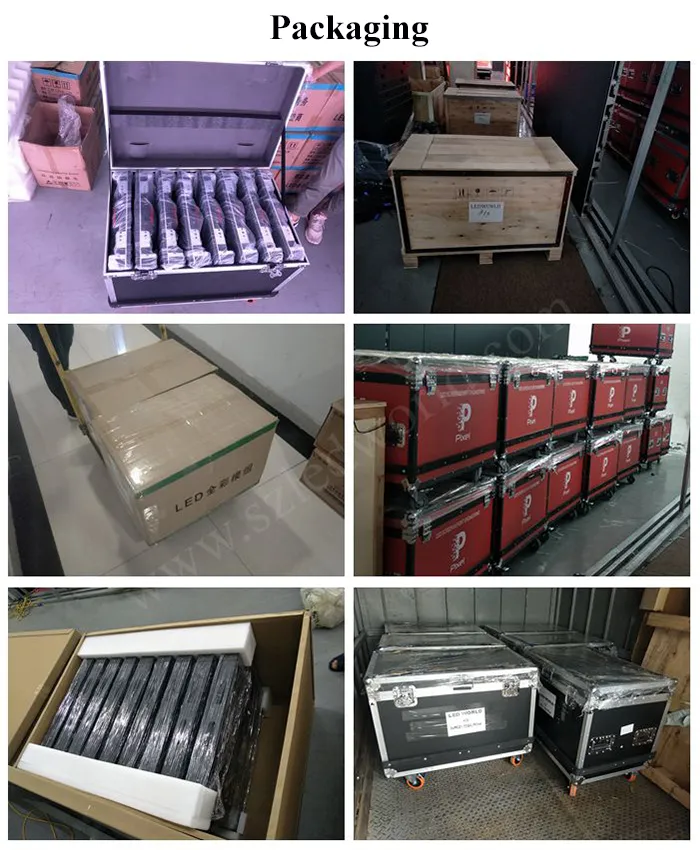

How are the products packaged for transport?

Products are typically packed in high-quality flight cases, plywood boxes, or carton boxes depending on the specific requirements and type of display.
