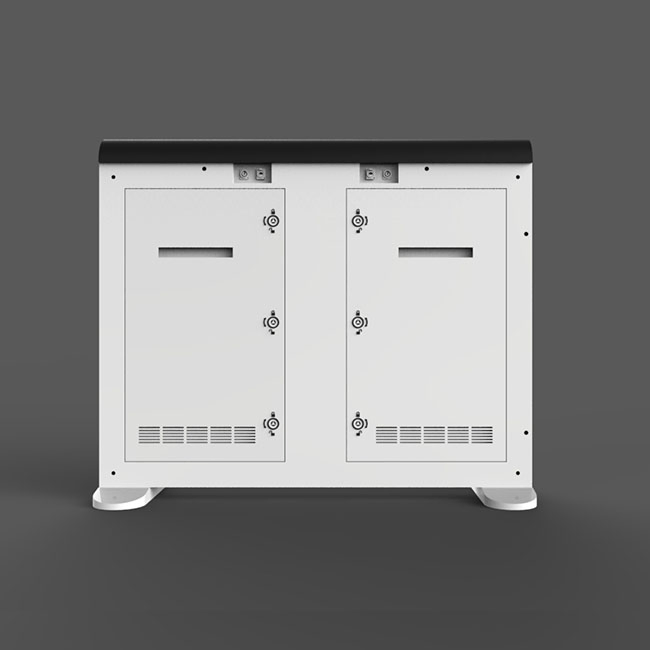

Electronic Digital Stadium Sports LED Display P10 Football, LED Basketball Scoreboards, LED Electronic Score Board Display

1 / 5

Electronic Digital Stadium Sports LED Display P10 Football, LED Basketball Scoreboards, LED Electronic Score Board Display

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SPAS-10

Pixel Pitch

10mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text, Market Display

Avg Power Consumption

250W/M2

Pixel Density

10000 dot / m²

Scanning Mode

1/2 Scan

Application

Sports Stadium Advertising

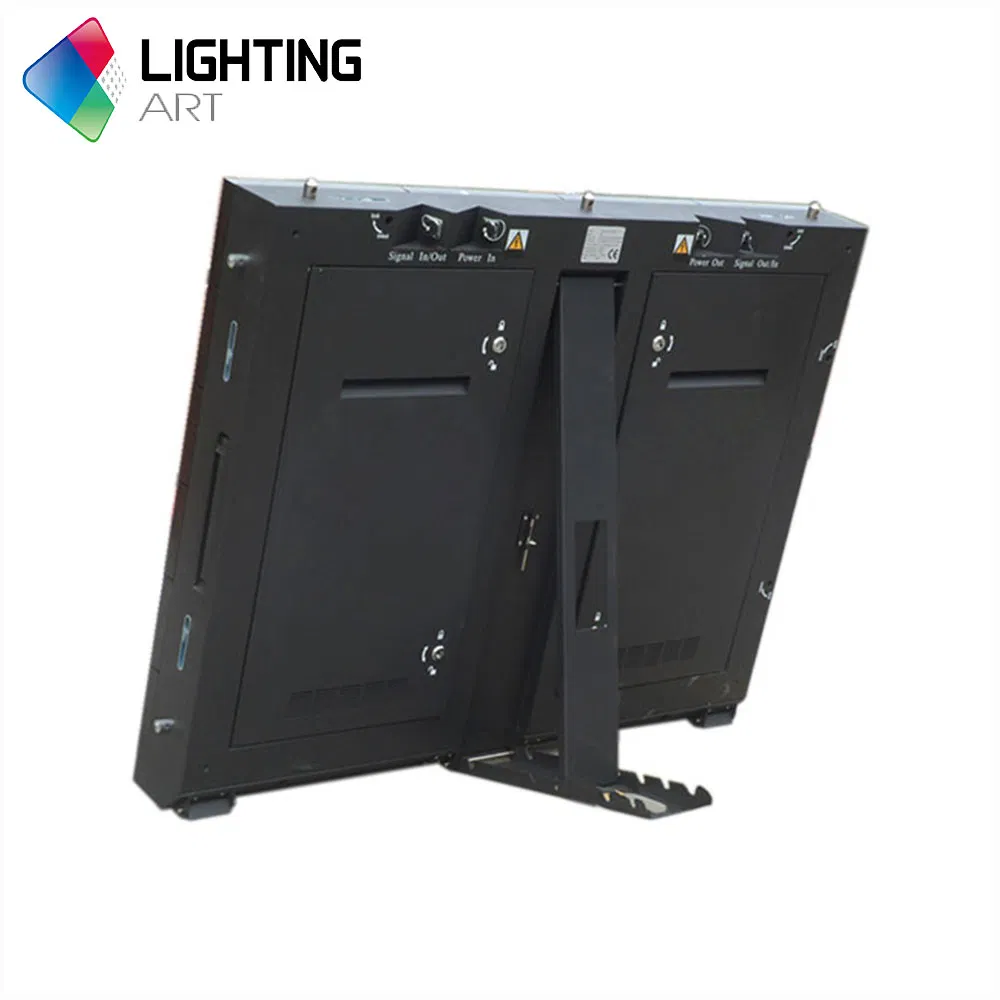

Cabinet Material

Aluminum

Certification

CE, FCC

Product Features & Application

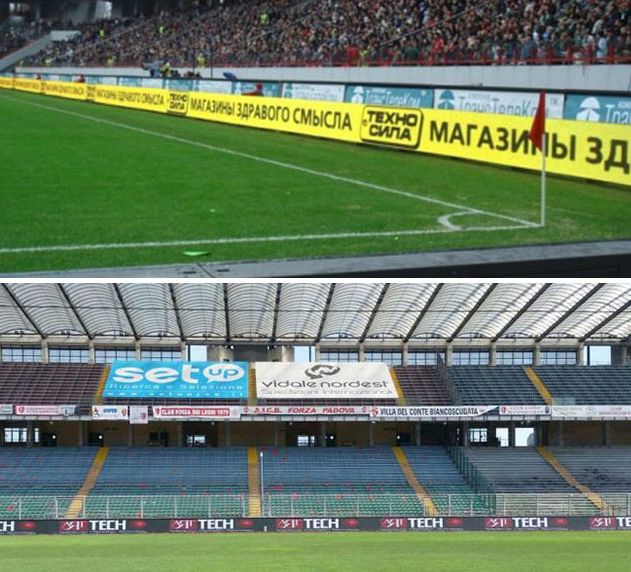

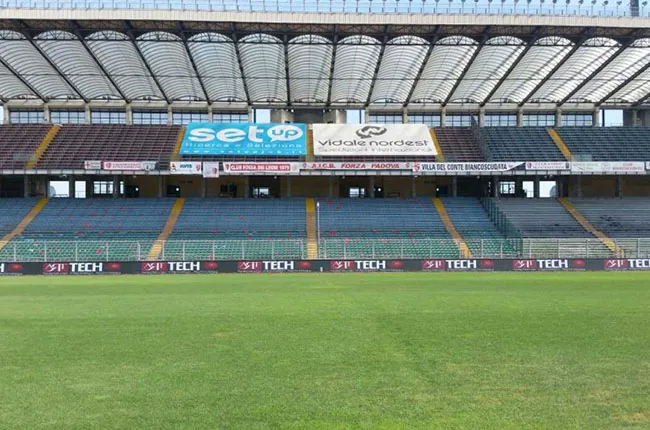

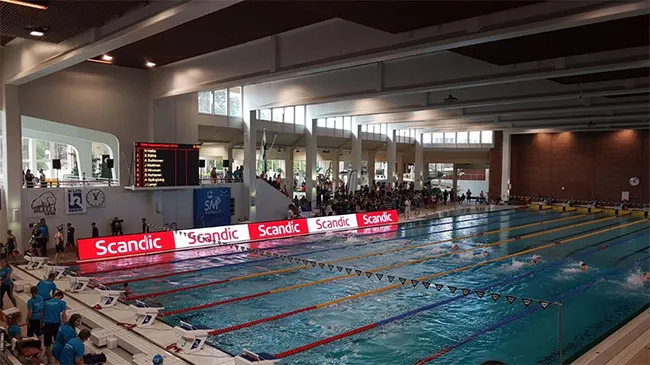

Ideal for Stadium Environments: Advanced LED screen designed specifically for football stadiums, basketball courts, swimming pools, and hockey arenas.

Cost-effective aluminum cabinet construction.

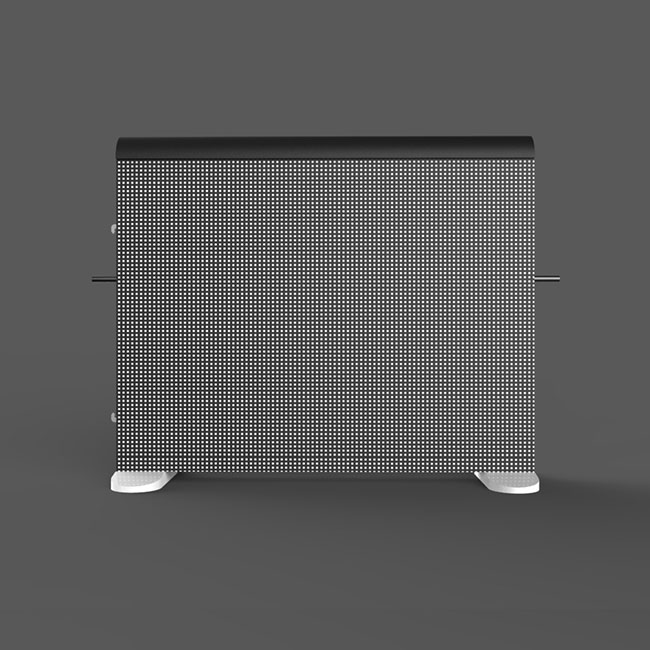

Equipped with soft top covers and soft masks to protect athletes from injury.

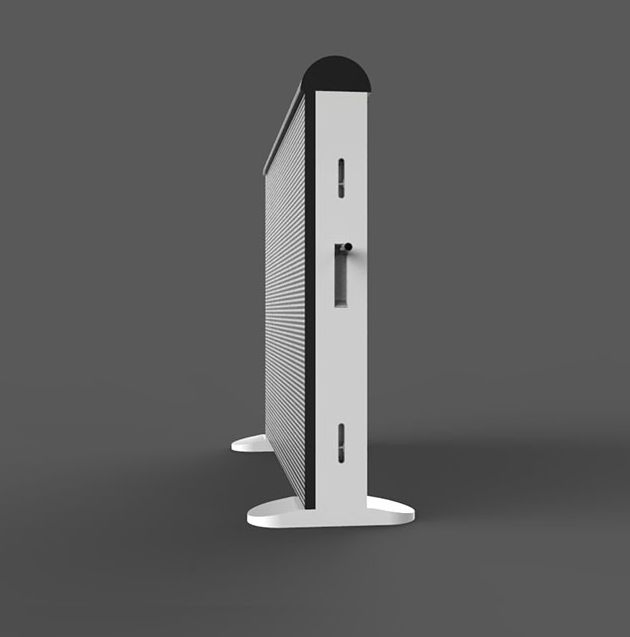

Supports flexible angle adjustments from 0-15 degrees.
High brightness (6500 NIT) for excellent outdoor visibility.
IP65 protection grade for all-weather reliability.

Detailed Specification Table

No.	Parameter Item	Details
1	Model No.	SPAS10
2	Pixel Pitch (mm)	10
3	Module Size (mm)	320*160
4	Cabinet Size (mm)	1280960120
5	LED Encapsulation	SMD3535 KINGLIGHT
6	Brightness (NIT)	6500
7	Refresh Rate (Hz)	3840
8	Viewing Angle (H/V)	±140°/±140°
9	Protection Grade	IP65
10	Optimal Viewing Distance	≥20m

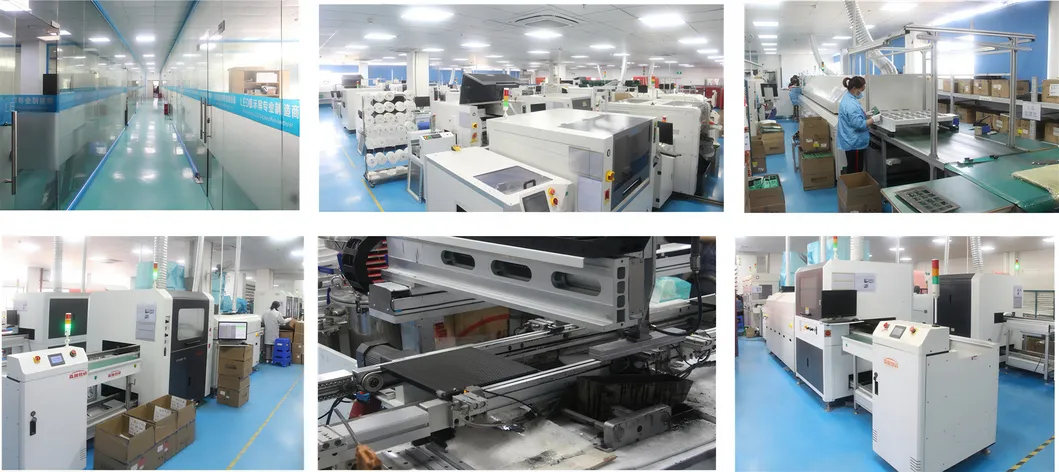

Manufacturing & Quality Control

Our production process utilizes high-technology automatic machines and includes rigorous testing phases:

Full aging tests conducted for every module.
Detailed grayscale testing to ensure color uniformity.
Skillful assembly by experienced technicians.

Logistics & Terms

Production Time

Approx. 25 days (0-200 m²)

Payment Terms

30% T/T Advance, 70% before shipping

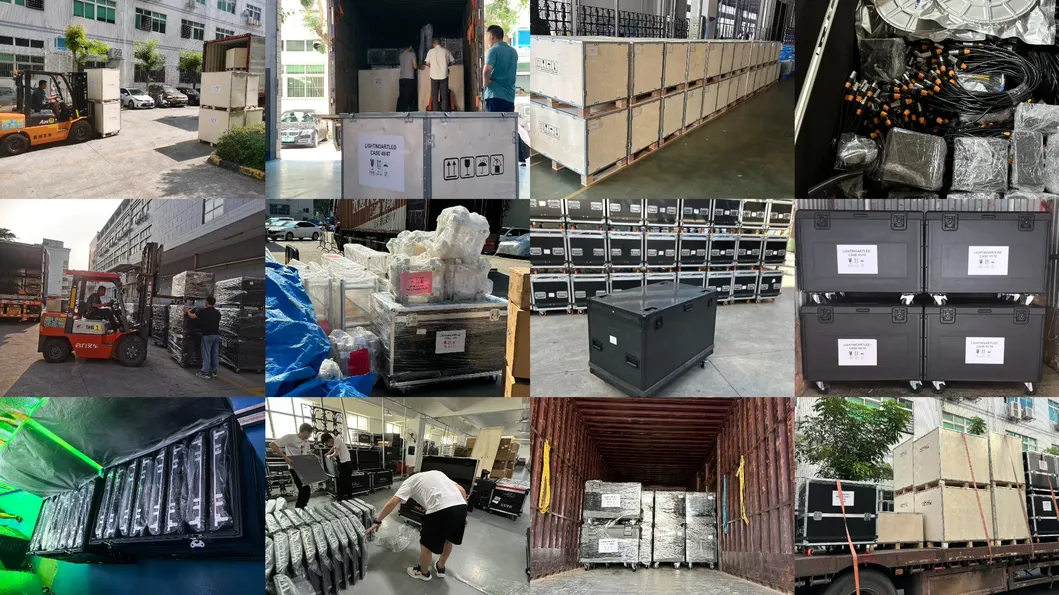

Packaging

Plywood Case or Flight Case

Trade Terms

FOB, CIF, DDU, DDP

Frequently Asked Questions

What makes this LED screen safe for athletes?

The screen features a soft top cover and a soft mask design specifically engineered to cushion impact and protect athletes in case of accidental collision.

Is the display visible under direct sunlight?

Yes, with a brightness of 6500 NIT, the display ensures clear and vivid visuals even in bright outdoor stadium environments.

Can the viewing angle be adjusted?

Absolutely. The cabinet supports angle adjustment from 0 to 15 degrees to provide the best viewing experience for the audience in different seating areas.

What is the protection level for outdoor use?

This model is rated IP65, meaning it is completely protected against dust and can withstand low-pressure water jets from any direction.

How long does production take?

For orders up to 200 square meters, the standard production time is approximately 25 days, which includes mandatory aging and quality tests.

What packaging options are available?

We provide durable plywood cases for standard shipping or professional flight cases for projects requiring frequent mobility.
