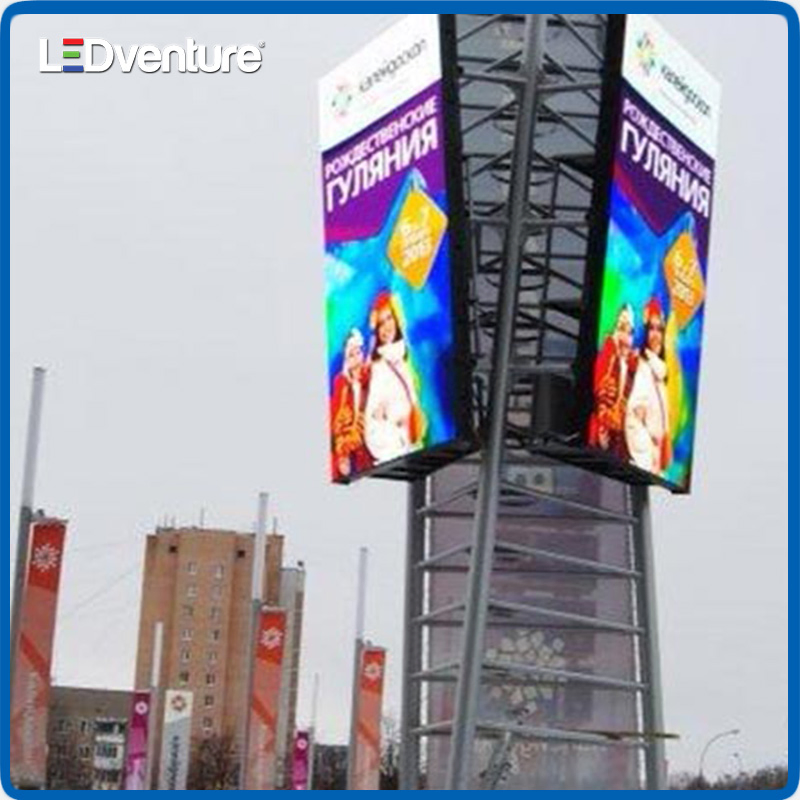

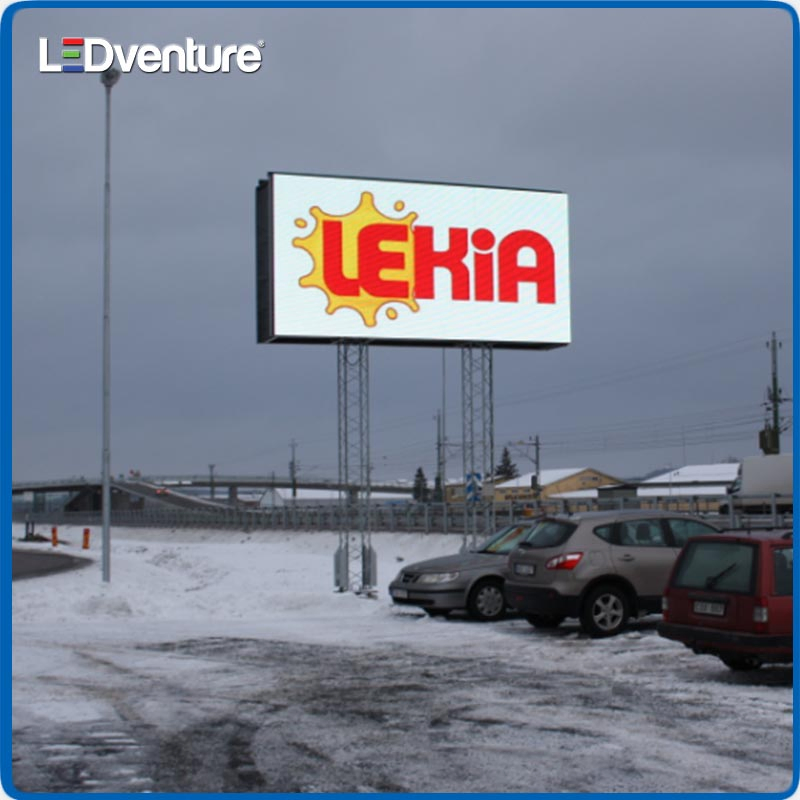

High Brightness Outdoor LED Screen with Video Wall Billboards Display for Media Facade Advertising
Focusing on a wide range of LED display solutions including indoor/outdoor, rental, flexible, transparent, and high-definition resolution screens. This series is optimized for stadium perimeters, sign boards, and large-scale billboards.
Our High Brightness Outdoor series (P2.976 to P20) is a cost-effective outdoor media solution. Featuring a refresh rate over 1920Hz (up to 3840Hz) and lightweight cabinet designs, it delivers top-tier image quality and stable performance. Its high-density resolution and simple installation make it a popular choice for versatile media applications.
| Specification Item | Details |
|---|---|
| Pixel Pitch | P4.44 P5.33 P6.67 P10mm |
| Brightness | > 6500 nits |
| Cabinet Size | 960x960mm | 1280x1280mm (optional) |
| Refresh Rate | > 3840 Hz |
| Driver IC | Constant Current |
| Power Consumption | Max. 720W/panel |
All materials are selected from top-tier quality levels, including SMD components, ICs, PCBs, and power supply units. This rigorous selection reduces maintenance costs and ensures long-term stability.
| Pixel Configuration | SMD 3 IN 1 |
| Module Size | 320x320mm (options) |
| Viewing Distance | 4-10m |
| Protection Level | IP65/IP54 |
| Input Voltage | AC110-240V, 50Hz/60Hz |
| Color Gray Scale | 16 bits / 65535 Levels |
| Viewing Angle | Horizontal/Vertical < 140° |
| Operating Temp | -20 °C ~ +45 °C |

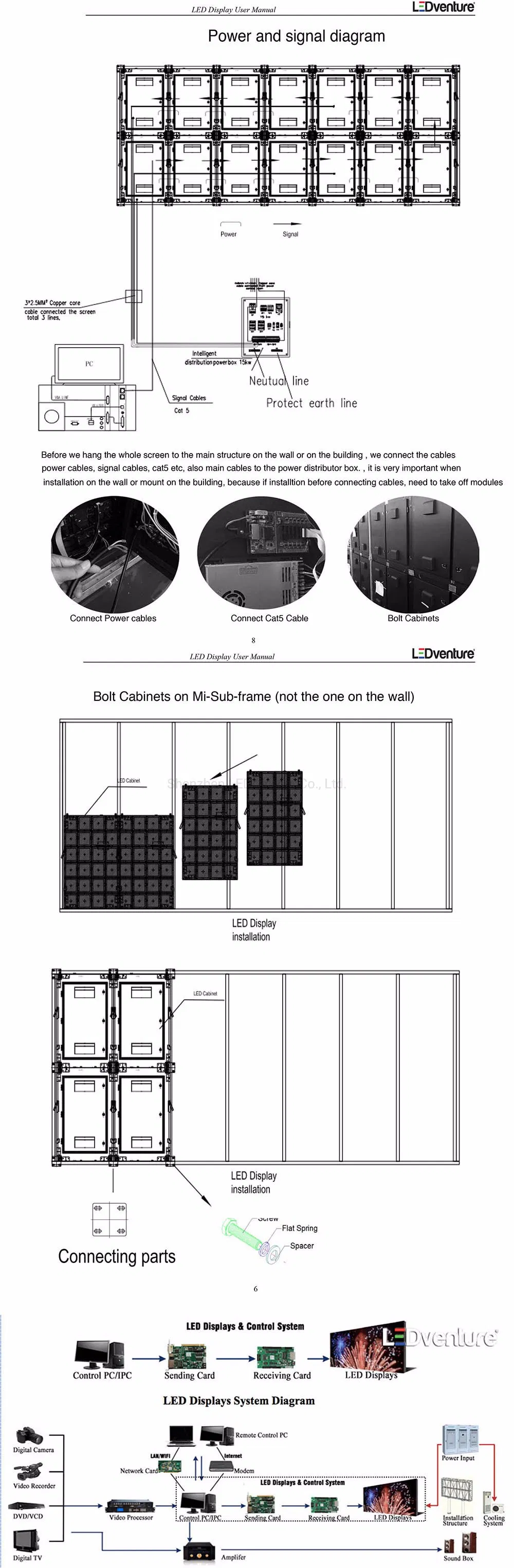

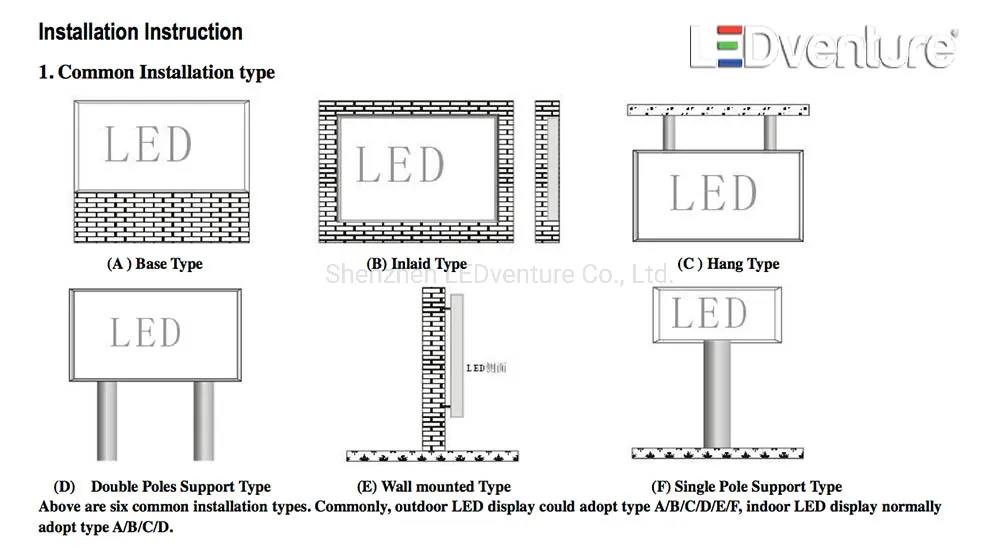

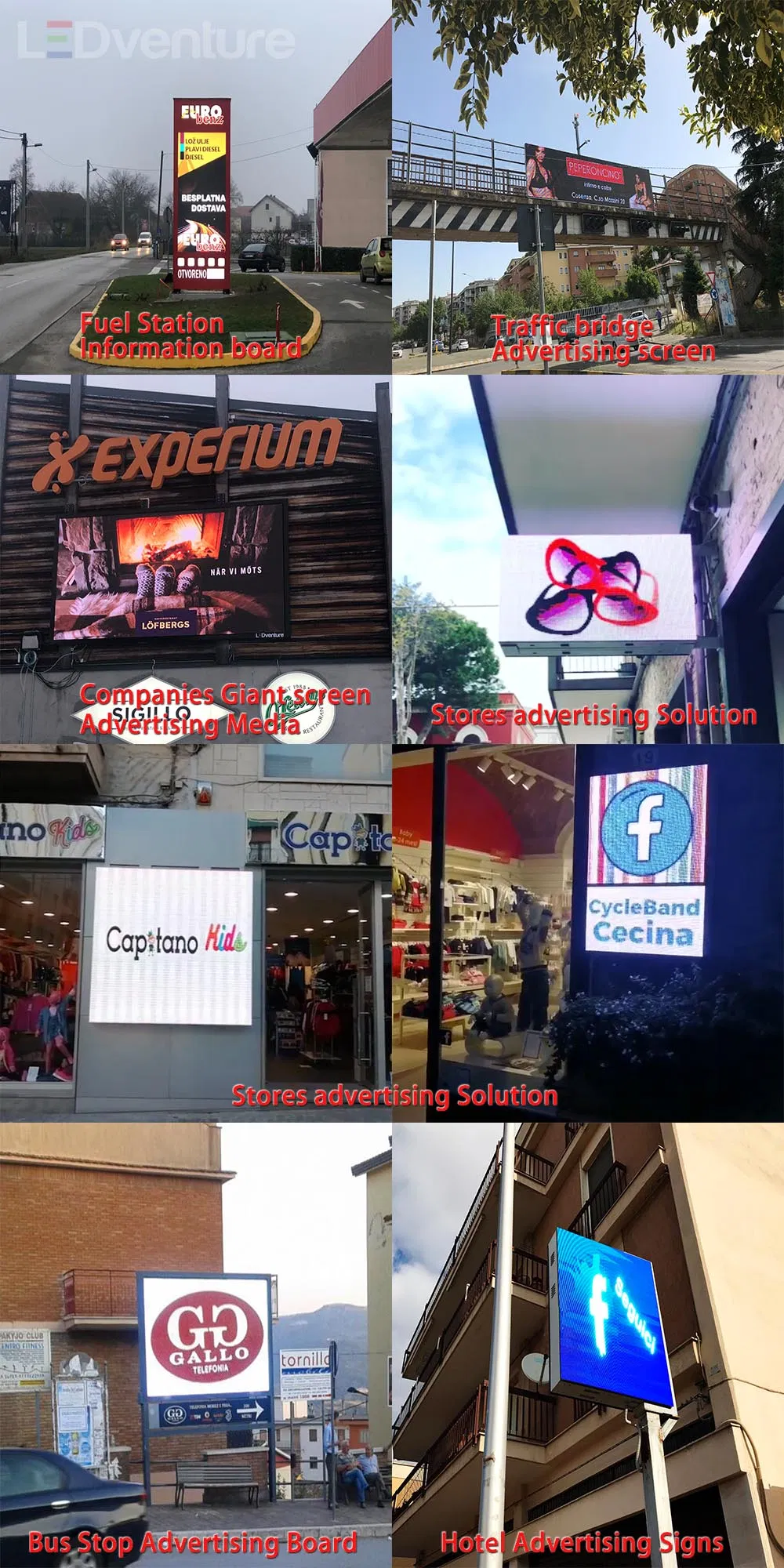

Flexible installation methods: wall-mounted, pillar-mounted, or standing. Systems include sending boxes, processors, and receiving cards for front or back service.
Securely packed in plywood cases for safe transport and easy loading.
Products have passed CE, EMC, FCC, and UL security tests to meet global market standards.
