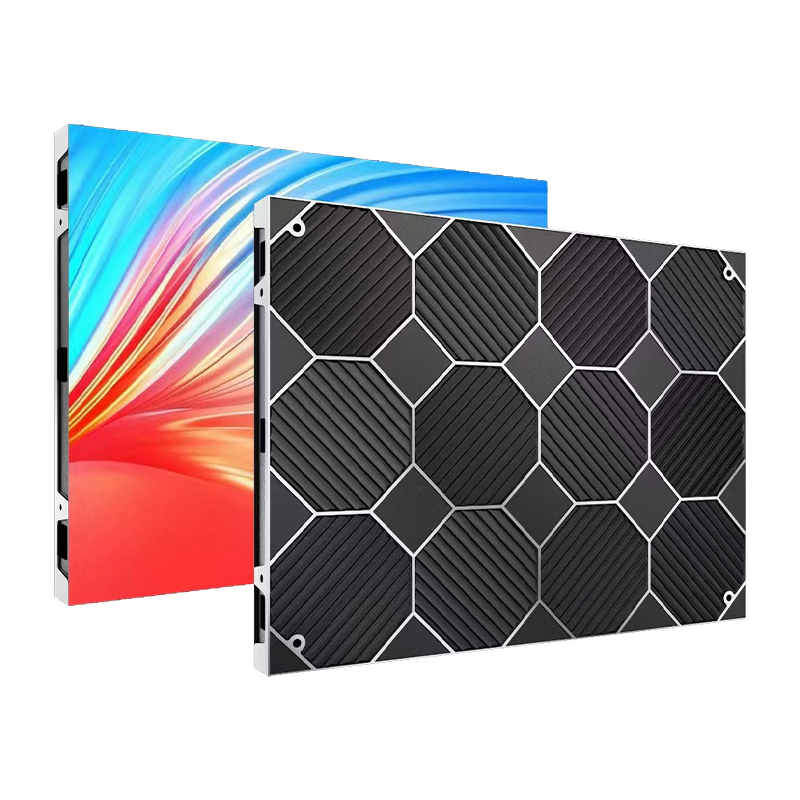

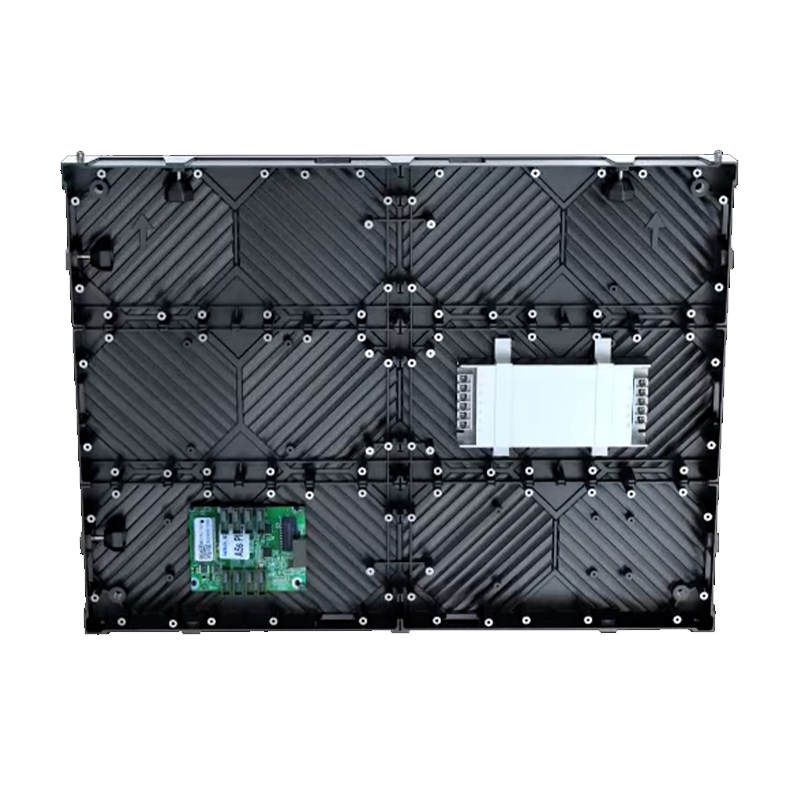

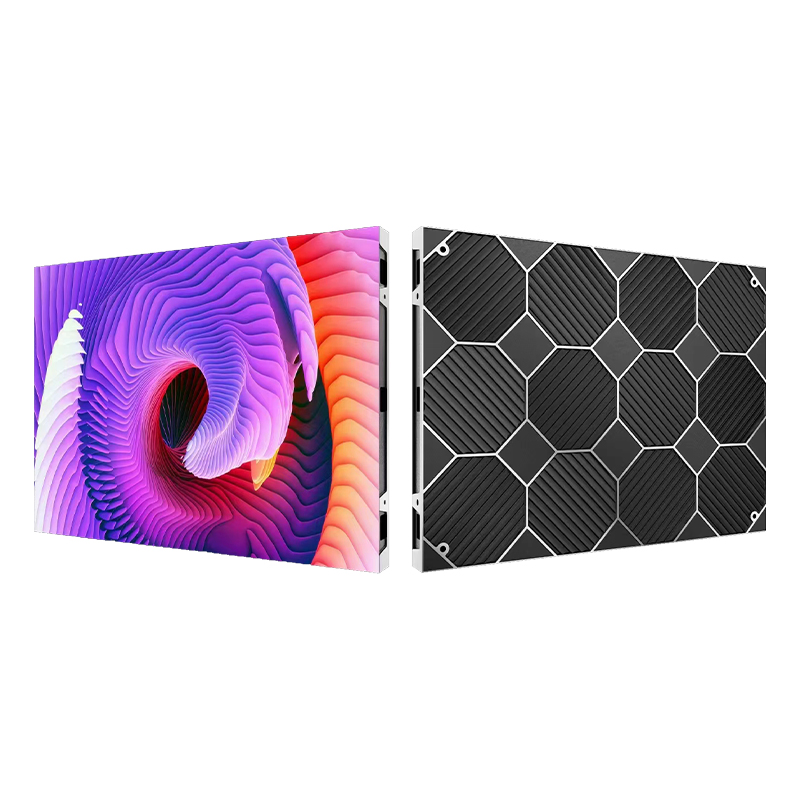

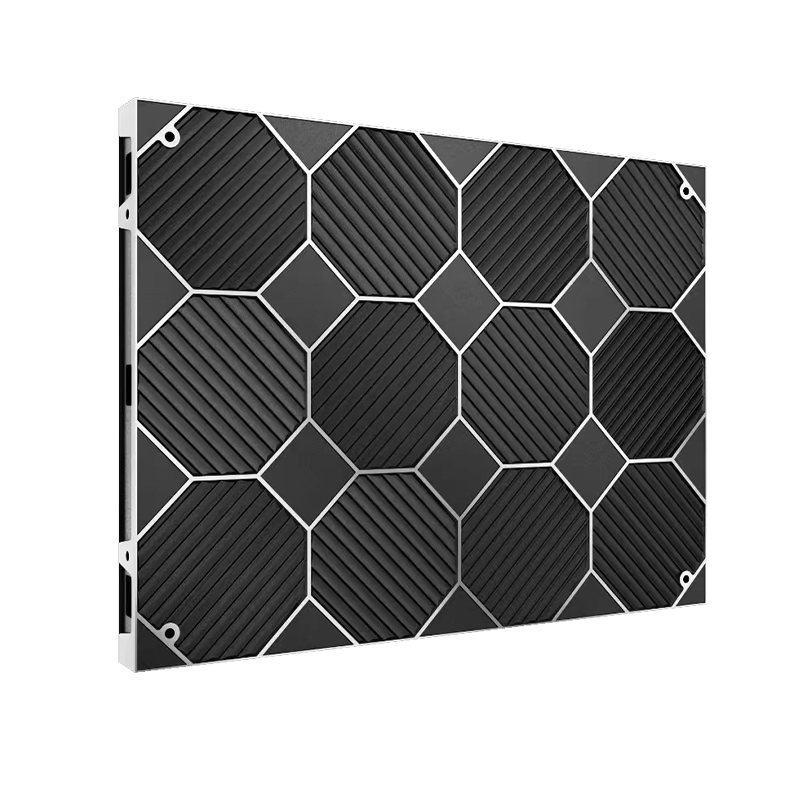

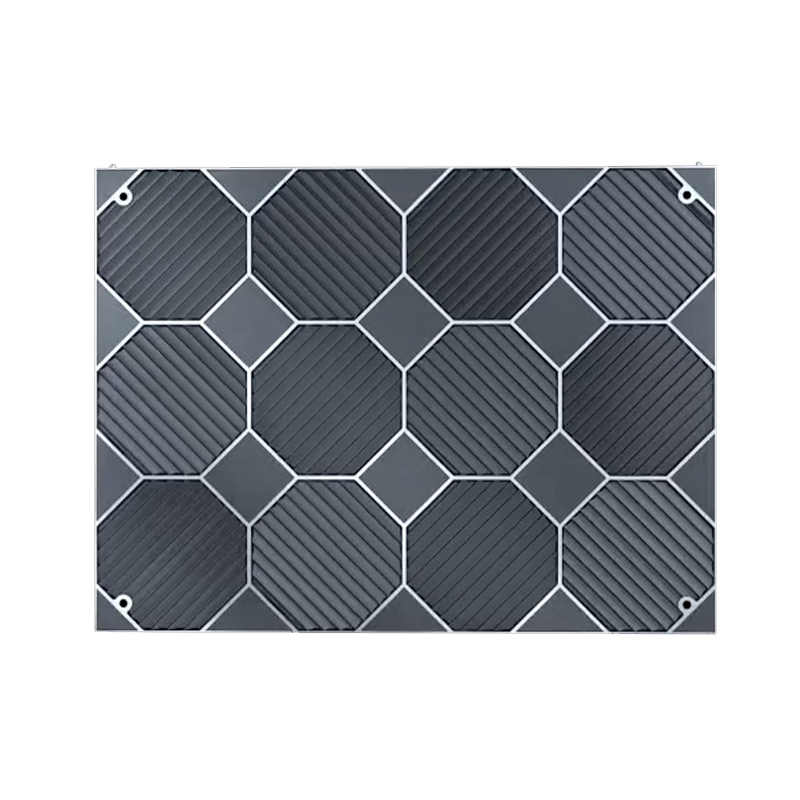

P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
1 / 5
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen
P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen

P1.53 640X480 Indoor Small Pitch Die Cast Aluminum Easy Installation Maintenance and Fixed Advertising LED Display Video Wall Panel Screen

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
FI-I 640*480
Pixel Pitch
1.53mm
Pixel Configuration
1R,1G,1B / SMD1010
Pixel Density
422,500dots/M²
Scanning Mode
1/26
IP Rating
IP31
Certification
CE, RoHS, CCC, ETL
Refresh Frequency
≥3,840Hz
Brightness
500 -1200 CD/M2
Cabinet Size
640*480mm
Cabinet Material
Die-Cast Aluminum
Cabinet Weight
≈8kg
📝 Product Description

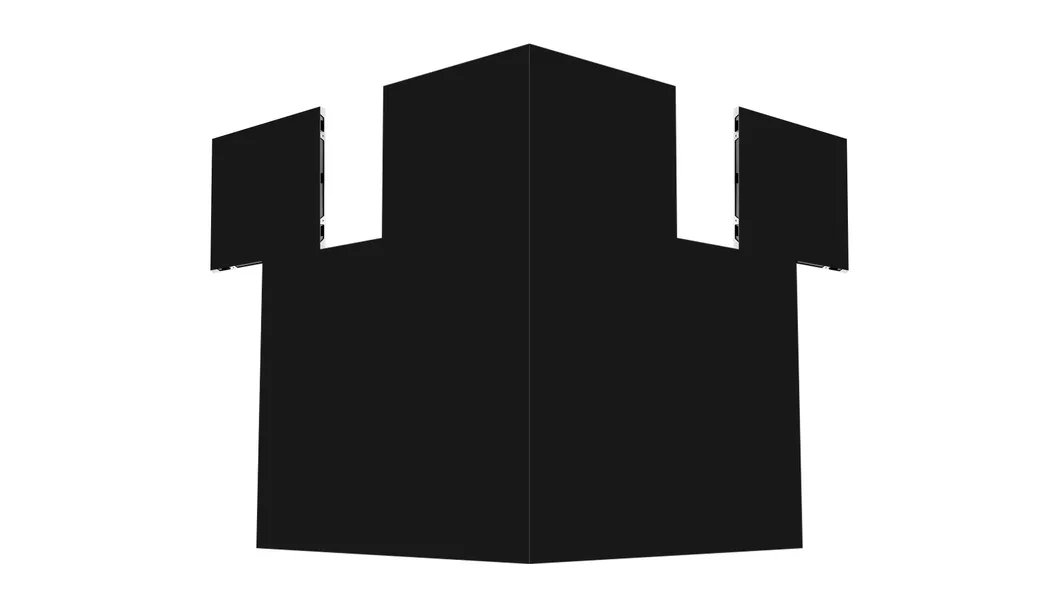

This 640X480 indoor fixed installation LED Display adopts a magnetic suction design for convenient front maintenance. The Die-Casting aluminum cabinet features a fast lock system, allowing locking in only 5 seconds for easy operation. Cabinets can be spliced at 90 degrees to meet diverse requirements. These displays offer excellent heat dissipation, high brightness, low power consumption, and a high contrast ratio for superior color reproduction.

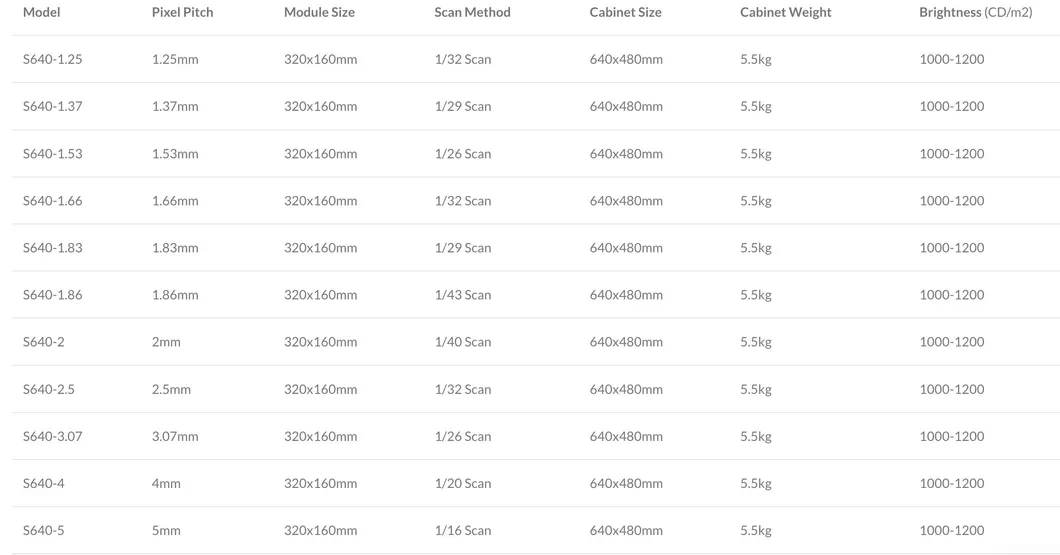

Technical Specification
Visual Effect
🌟 Main Features
Perfect Visual Effect: High brightness up to 2000md/m2 and wide viewing angles exceeding 160 degrees. The seamless splicing ensures a smooth viewing experience without gaps.
High Stability: Utilizing advanced packaging methods like COB and high-quality lamp beads to significantly reduce dead light rates and enhance long-term stability.

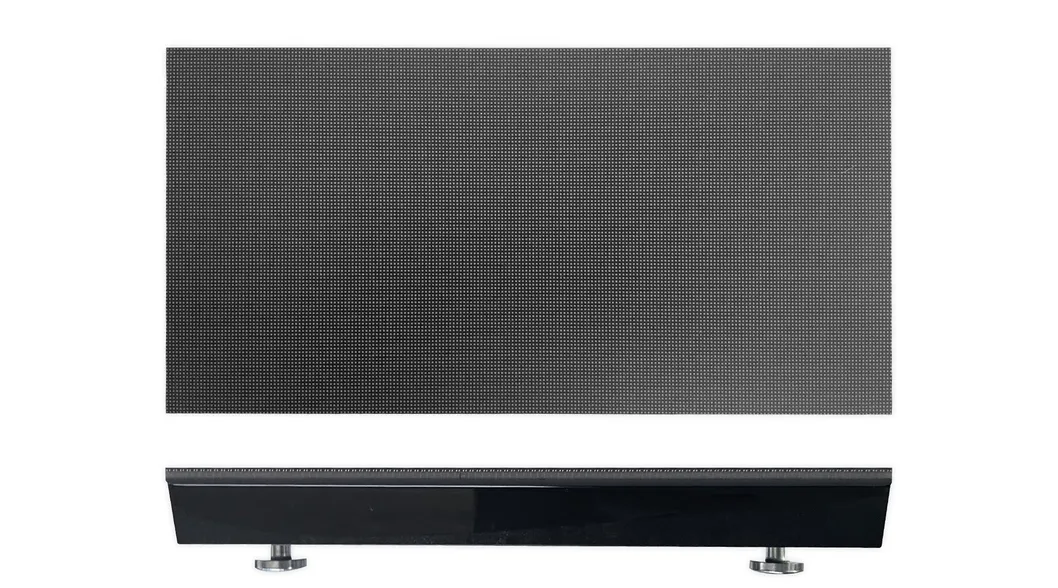

Stability Features
Superior Functions
🛠️ Hardware Features
  • Connecting plug-in design for improved stability and easy maintenance.
  • New cast aluminum shell: lightweight, high precision, and fast heat dissipation.
  • Point-to-point module design supporting both front and back maintenance.
  • Modular HD video wall design for simplified field installation.
  • Seamless connection for a perfectly smooth viewing experience.

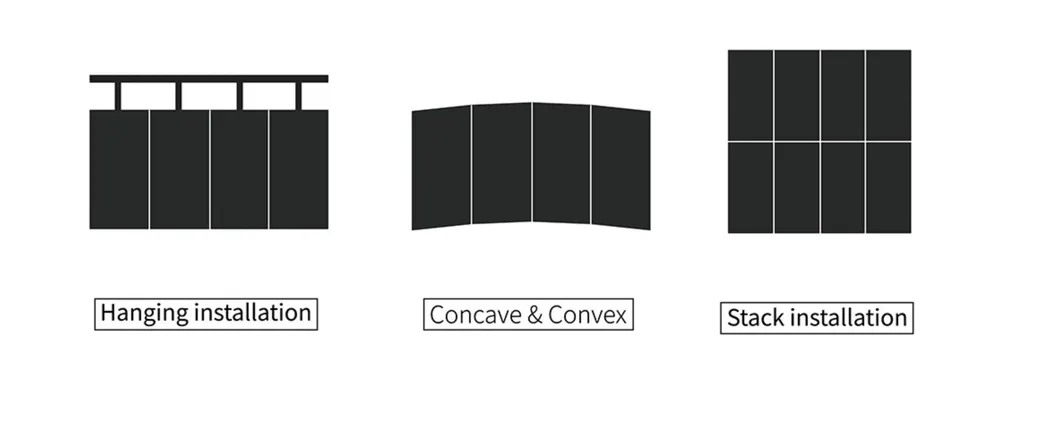

Multiple Installation

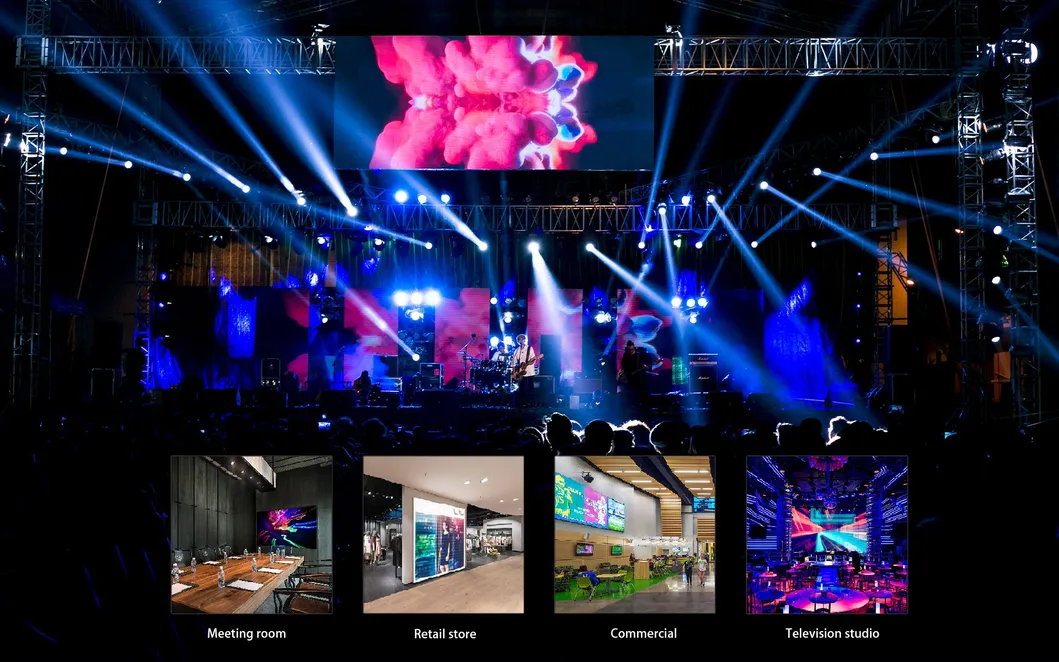

Application
⚠️ Attention

It is recommended to purchase enough LED display modules for spare replacement at once. Modules from different batches may have slight color differences due to production variations.

Profile
Production
Distribution
❓ FAQ
Q1. Can I have a sample order for the LED display? Yes, we welcome sample orders to test and check quality for both modules and whole displays.
Q2. What is the typical lead time? It takes about 2-3 weeks. For customized LED displays, the lead time is normally around 35 days.
Q3. How are the goods shipped? We mostly use FOB terms. Sea shipping usually takes 20 to 30 days depending on the destination and customs clearance.
Q4. How do I proceed with an order? First, share your requirements. We provide a quote and design document. Upon deposit, we start production and ship after the balance payment.
Q5. Is there a guarantee for the products? Yes, we offer a 1-2 year warranty depending on the specific product type.
Q6. Does the display support front maintenance? Yes, the 640x480 series features a magnetic suction design specifically for easy front-access maintenance.
