■ Basic Specifications
Pixel Configuration
1R, 1G, 1B (DIP345)
Pixel Density
10000 dot / m²
Brightness
More Than 7000CD/M2
Module Size
256X128 / 256X256
Cabinet Size
1024X1024X190
Viewing Angle
H: 110° / V: 60°
■ Key Features
✔
High Brightness: Supports automatic or manual adjustment to suit ambient lighting.
✔
Superior Protection: IP65 waterproof rating, anti-corrosion, and anti-UV for all-weather use.
✔

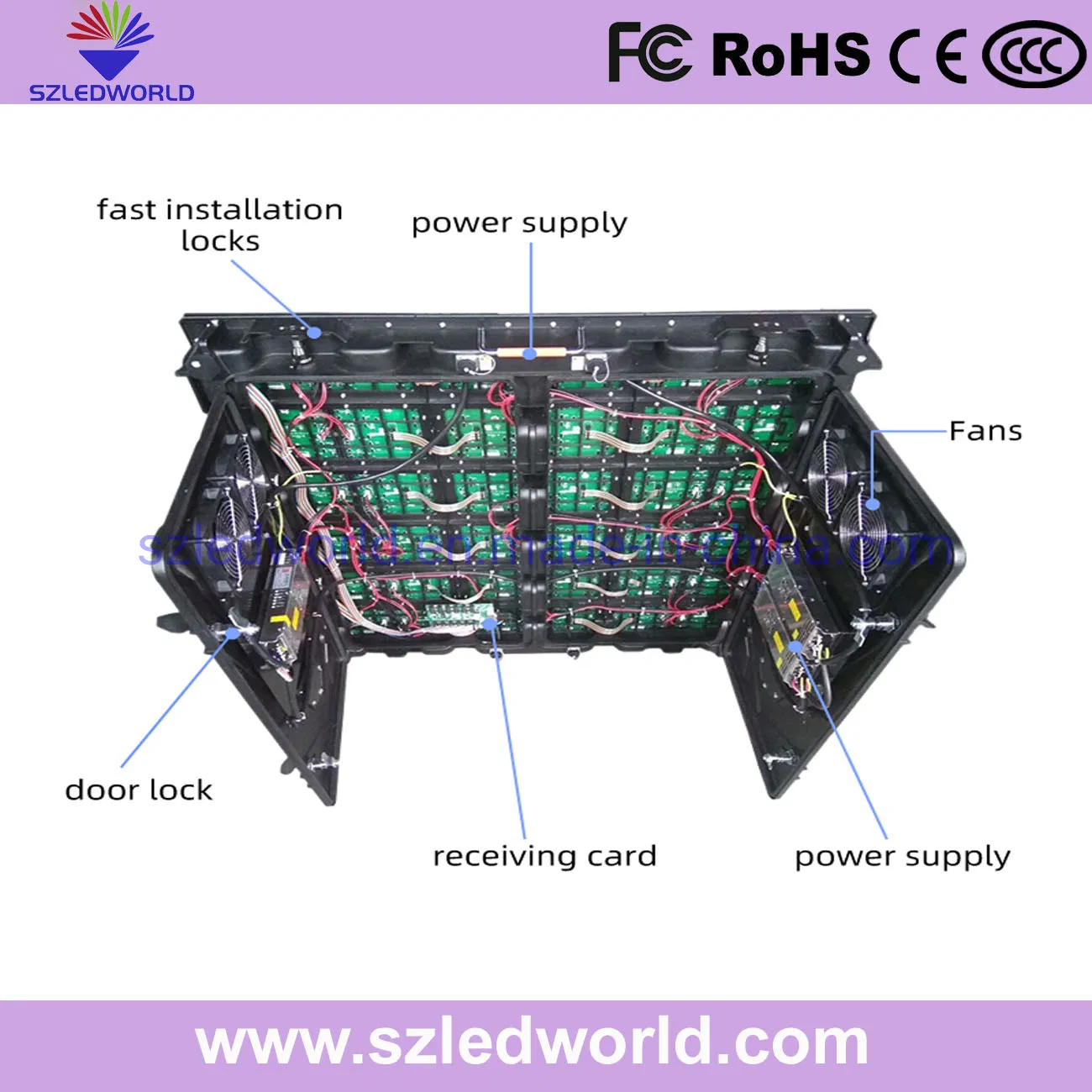

Dual Backup: Features dual power supply and backup data control signals for reliability.
✔
Visual Excellence: Synchronous color and brightness adjustment for realistic imagery.
■ Technical Parameters (P4 - P10)
| Items |
P4mm |
P5mm |
P6mm |
P8mm |
P10mm |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm | 10mm |
| Pixel Density (dots/m2) | 62500 | 40000 | 27777 | 15625 | 10000 |
| Configuration | SMD2525 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Module Size (mm) | 256x128 | 160x160 | 192x192 | 256x128 | 320x160 |
| Cabinet Weight | 24KG | 36KG | 36KG | 41KG | 36KG |
| Brightness (cd/m2) | >5500 | >5500 | >6000 | >5000 | >7000 |
| Viewing Angle | H: 120°; V: 120° |
| Refresh Rate | 300-3000HZ adjustable |
| Operating Temp | -20ºC ~ +50ºC |
■ Professional Services
Pre-sales Support
- Technical advice before product selection.
- Framework structure design and technical drawings.
- Software customization for specific usage requirements.
After-sales Service
- Two-year warranty service with lifetime follow-up.
- Free remote configuration and troubleshooting.
- System function improvements and software upgrades.

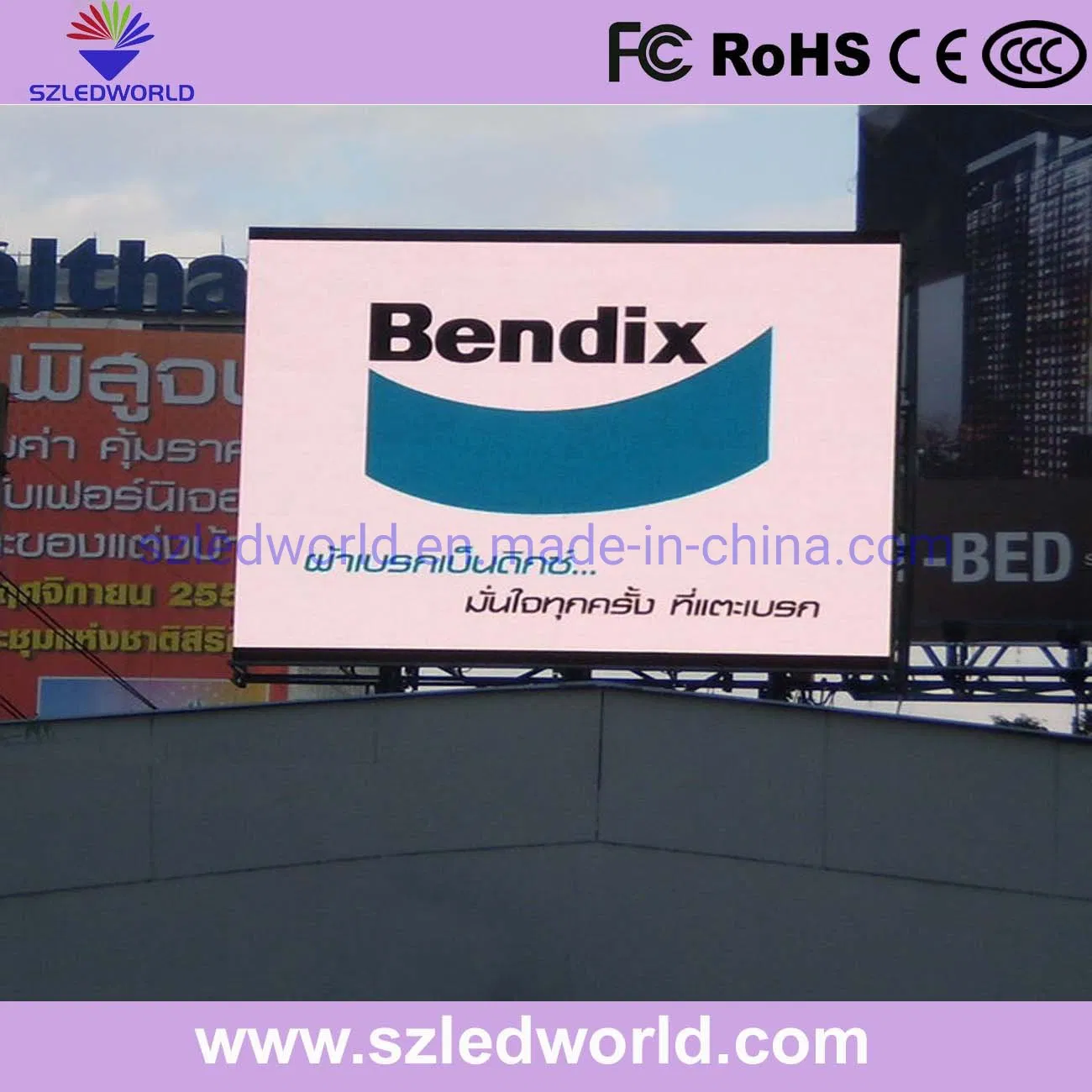

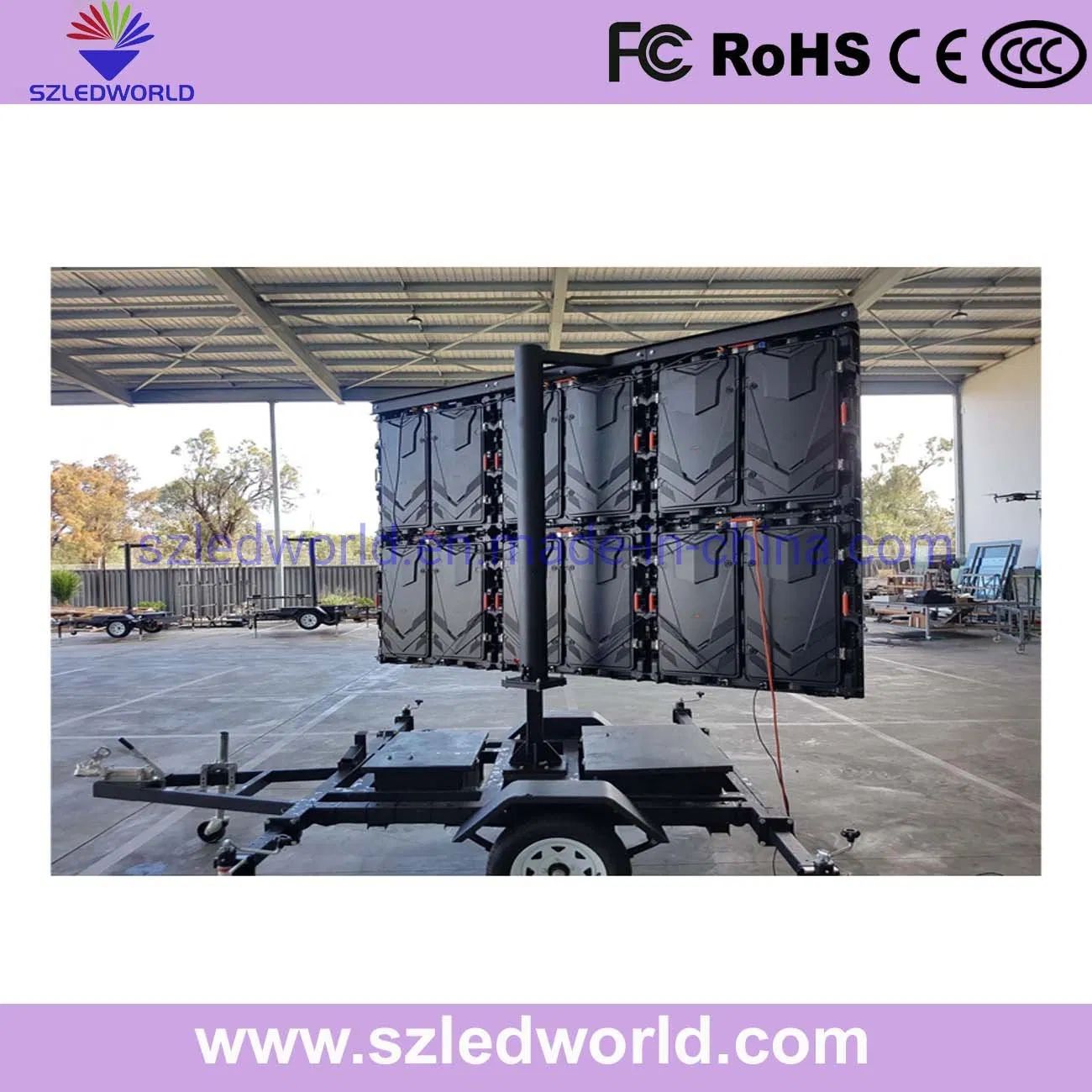

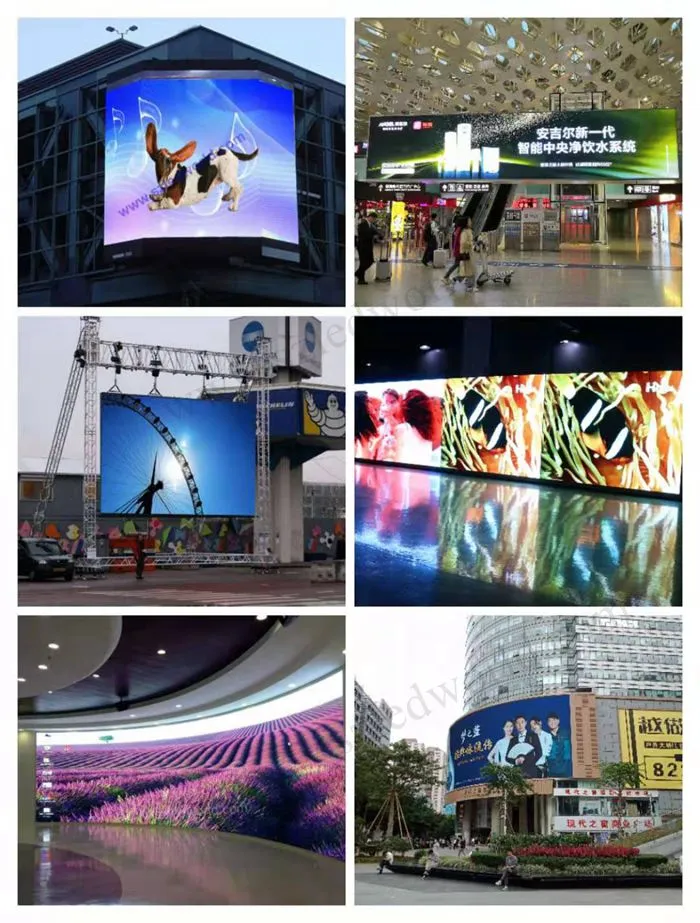

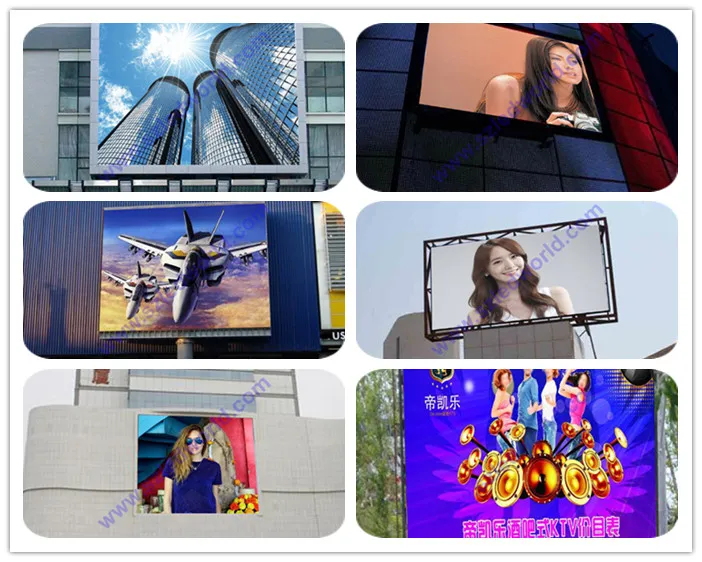

■ Project Cases & Details

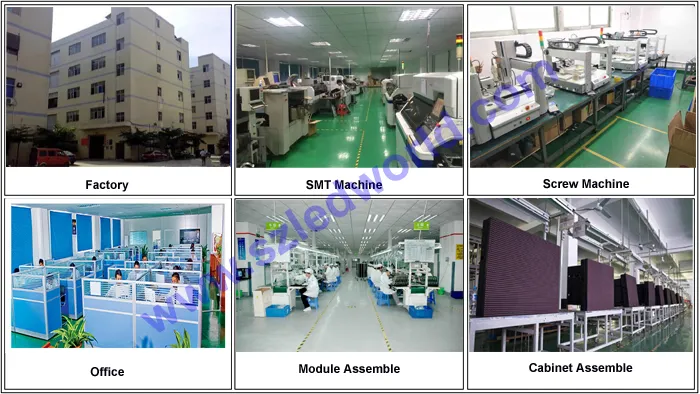

■ Production & Aging Test
■ Frequently Asked Questions
What is the expected lifespan of these LED displays?
Our LED displays are designed for high durability with a lifespan of approximately 100,000 hours, which is about 10 years of usage.
Are the outdoor LED boards waterproof?
Yes, our outdoor series features an IP65 protection rating on the front, making them resistant to rain, dust, and harsh weather conditions.
Can the brightness be adjusted for day and night use?
Absolutely. The system supports both automatic and manual brightness adjustment to ensure optimal visibility and energy saving.
What pixel pitches do you offer for this series?
We provide a wide range of options including P4, P5, P6, P8, and P10 to meet different viewing distance and resolution requirements.
What kind of after-sales support is provided?
We offer a warranty of at least two years, free technical consultation, remote configuration, and lifetime software system upgrades.
Is training available for new users?
Yes, we provide free training for our customers covering the operation and maintenance of the LED display systems.
