High-performance LED display solution designed for stadium environments and outdoor advertising with superior brightness and stability.

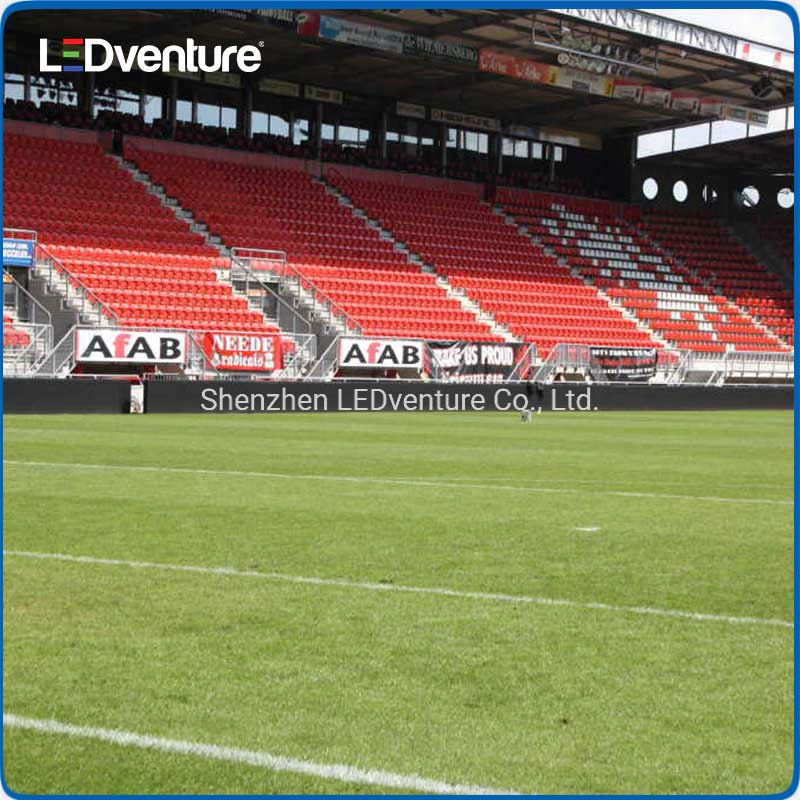

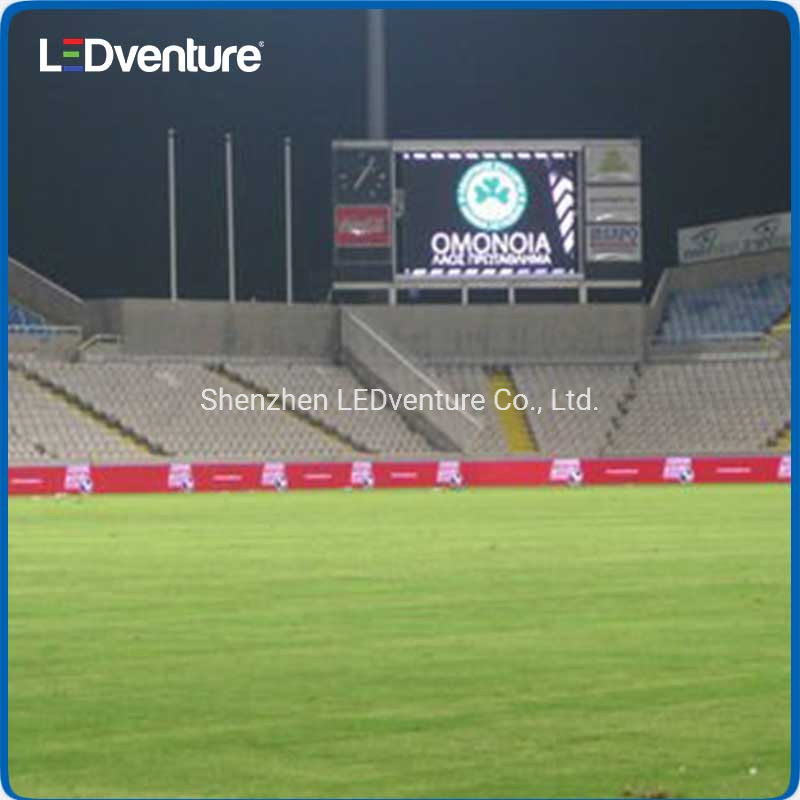

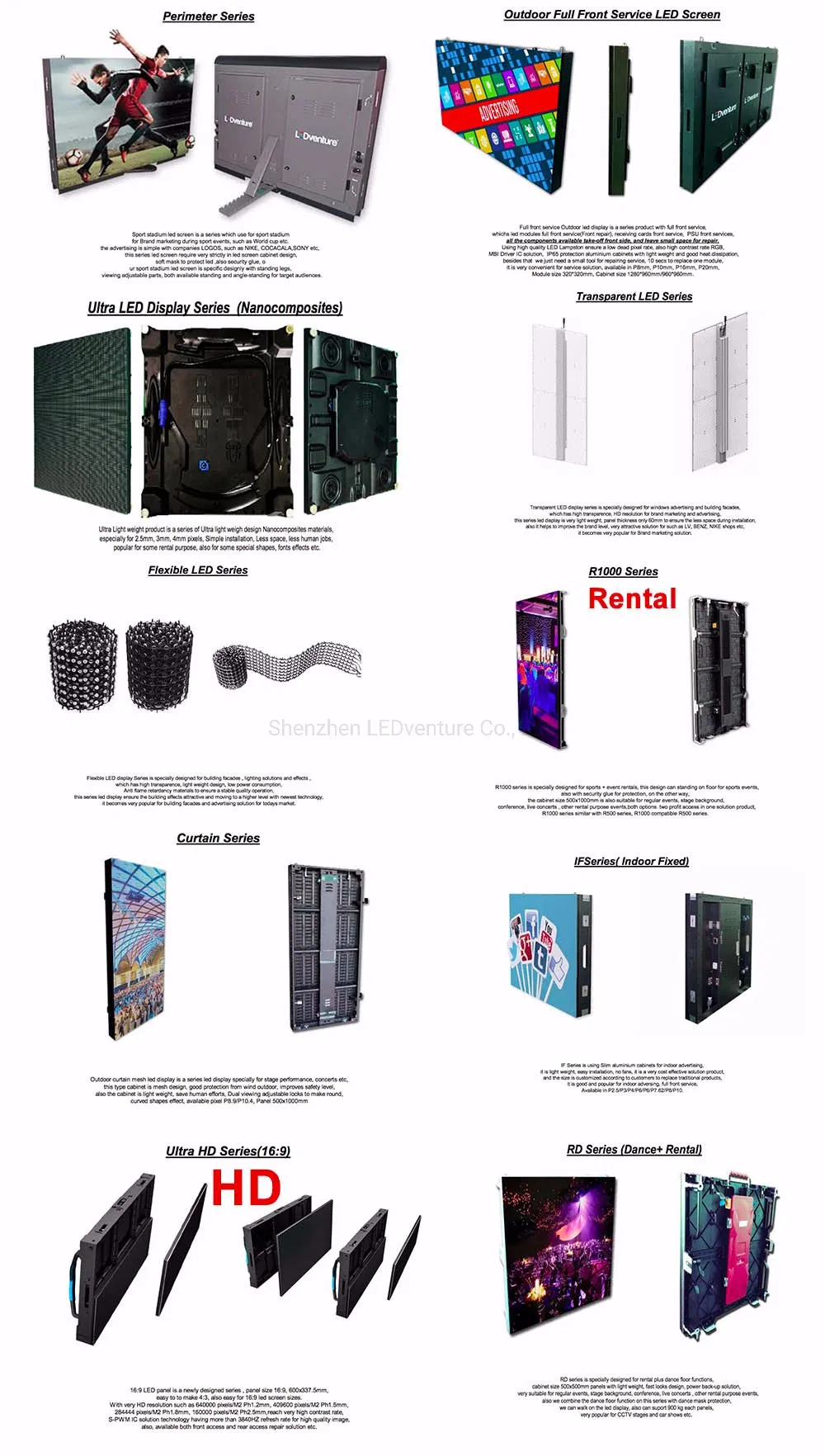

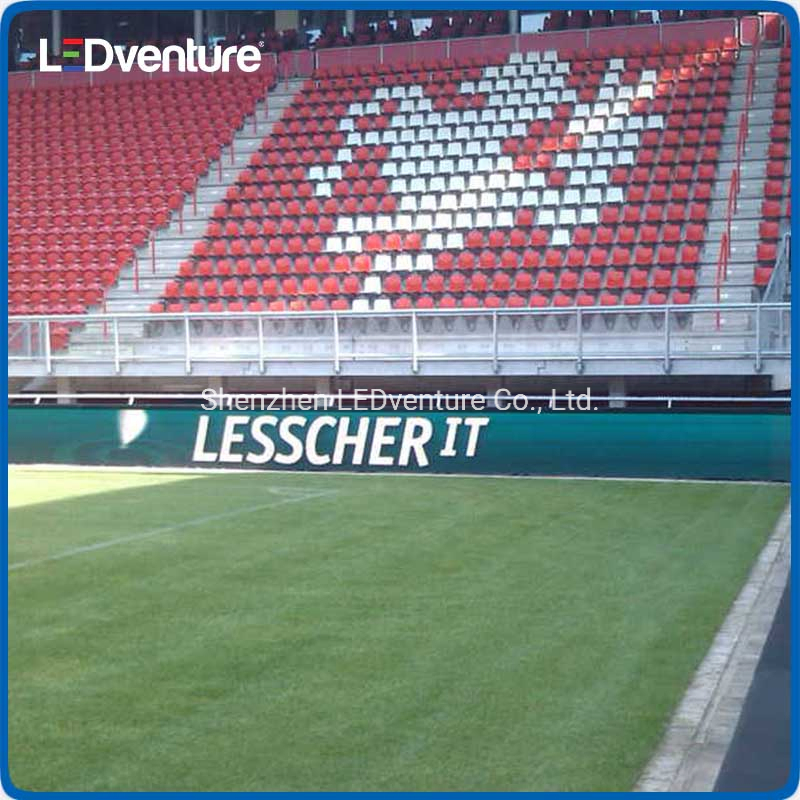

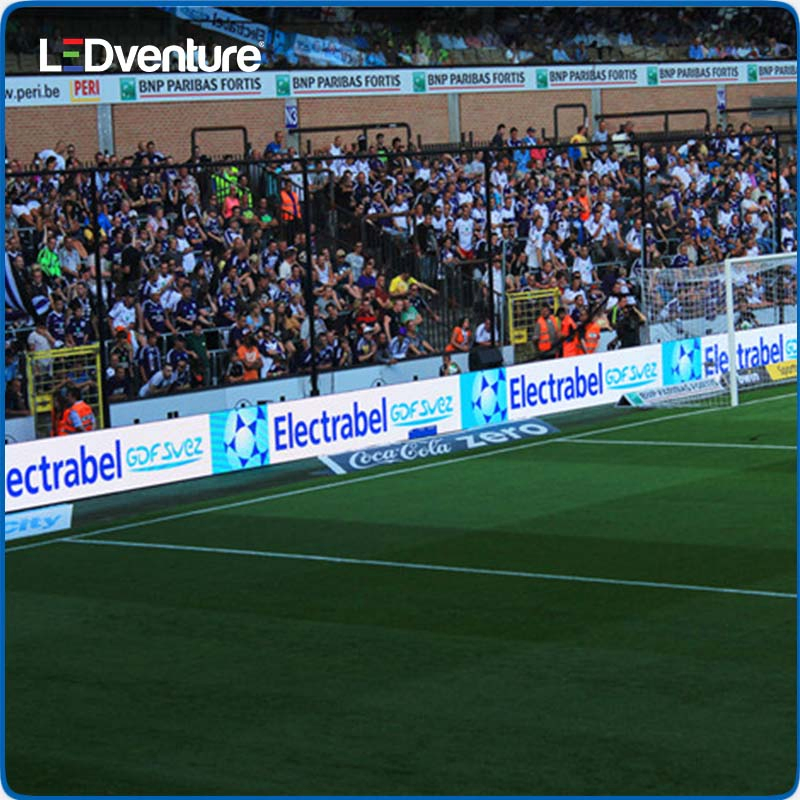

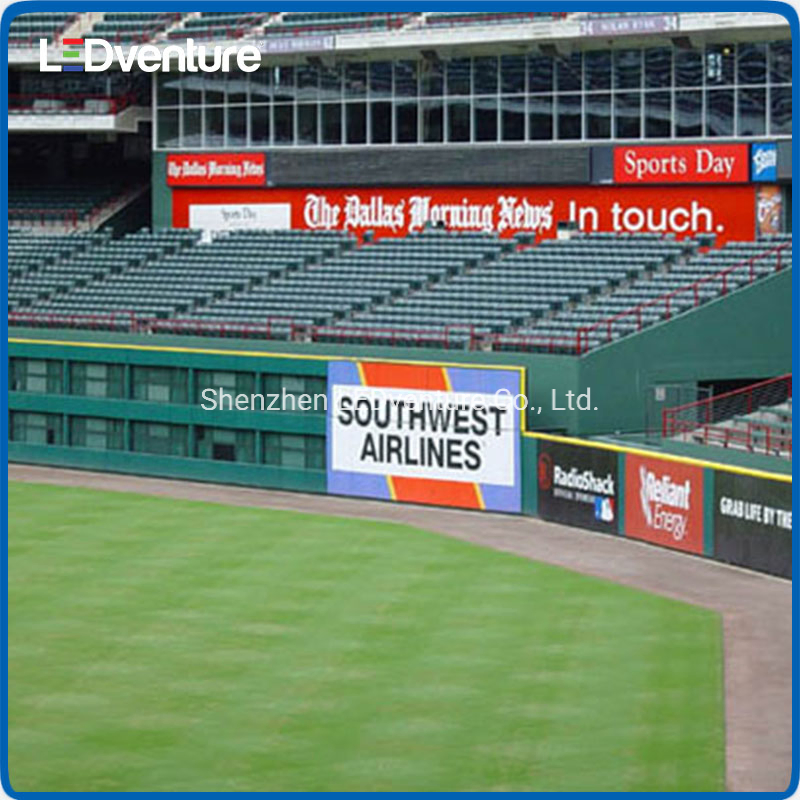

This sport stadium LED screen series is specifically engineered for brand marketing during major sports events. It provides high-visibility advertising for global brands with simple yet impactful LOGO and video displays. We specialize in a wide range of LED solutions including indoor, outdoor, rental, flexible, and perimeter displays.
| Pixel Pitch | 10mm, 12.5mm, 16mm, 20mm |
| Brightness | > 7000nits |

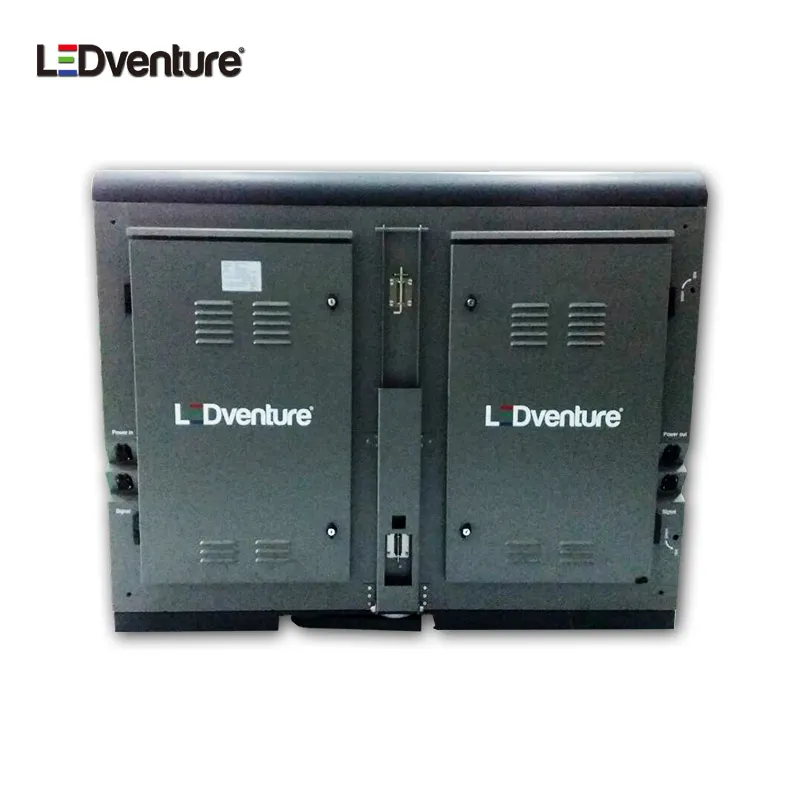

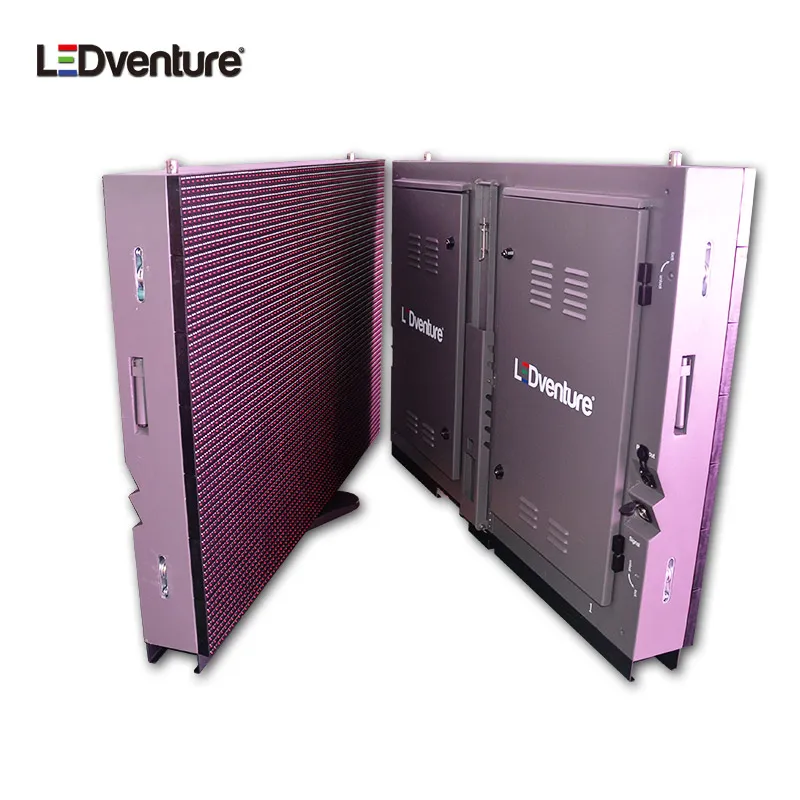

| Cabinet size | 1280x960mm (Optional) |
| Max. Power consumption | 750W/panel |
| Refresh rate | >1920HZ |
We utilize top-tier materials for all components, including SMD LEDs, IC components, PCBs, and power supply units. This commitment to quality ensures stable operation and significantly reduces maintenance costs over the product's lifespan.
| Feature | Specification Details |
|---|---|
| Pixel Density | 3906 pixels/M2 |
| LED Type | DIP346 |
| Module Size | 256x128mm |
| Min. Viewing Distance | 16 Meters |
| Viewing Angle | ≤140° (Horizontal/Vertical) |
| Protection Level | IP65/IP54 |
| Input Voltage | AC110-240V, 50Hz/60Hz |
| Gray Scale | 16 bits |
| Lifespan | ≥100,000 hours |
| Operating Temp | -20°C ~ +45°C |

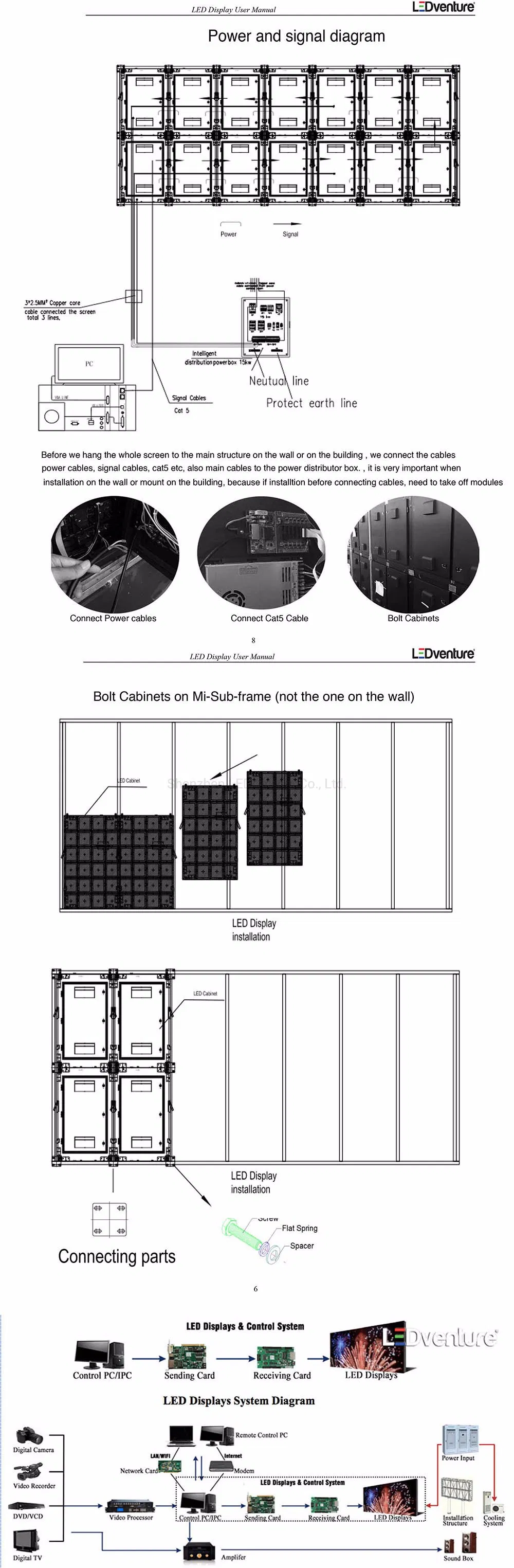

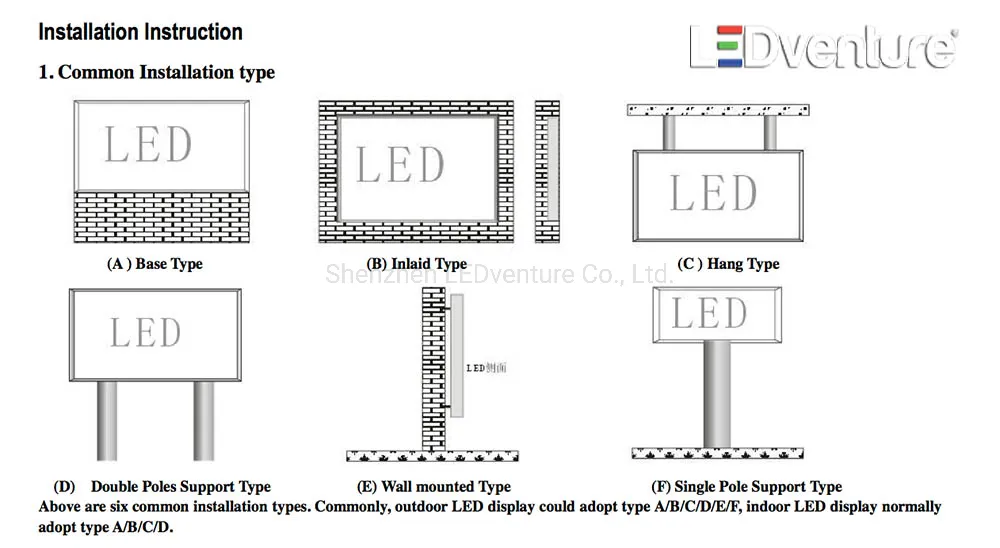

Versatile installation options include wall mounting, pillar mounting, or free-standing. The system includes all necessary hardware such as sending cards, processors, and receiving cards.

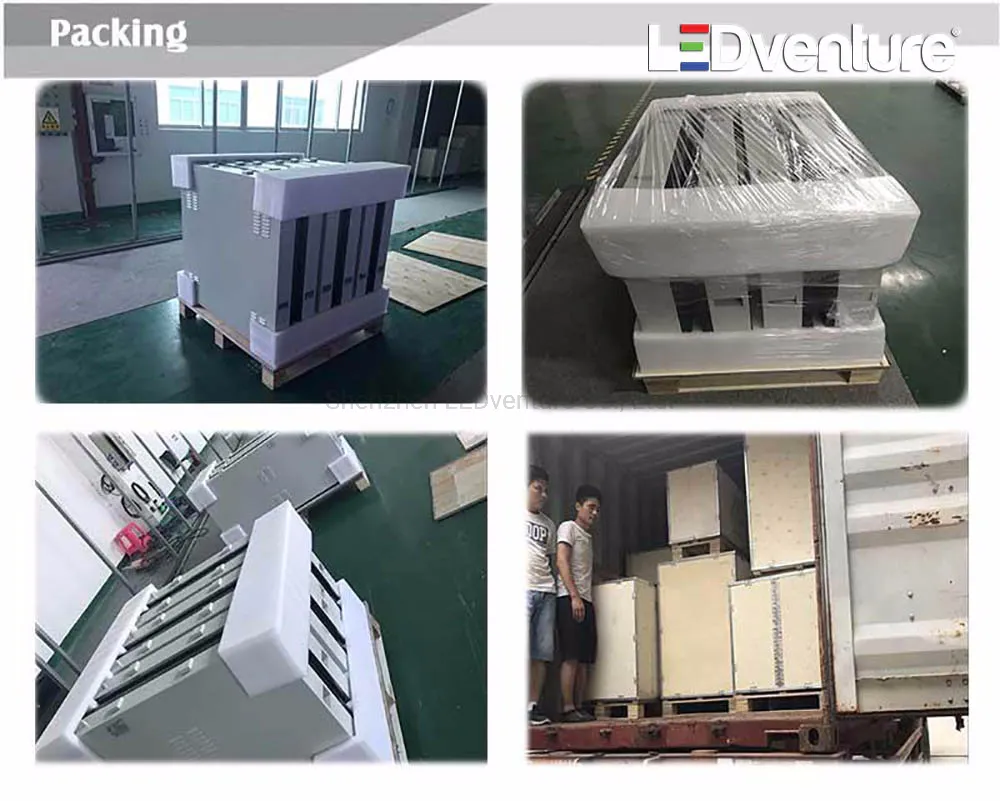

Products are packed in robust plywood cases to ensure safety during transport and ease of loading.

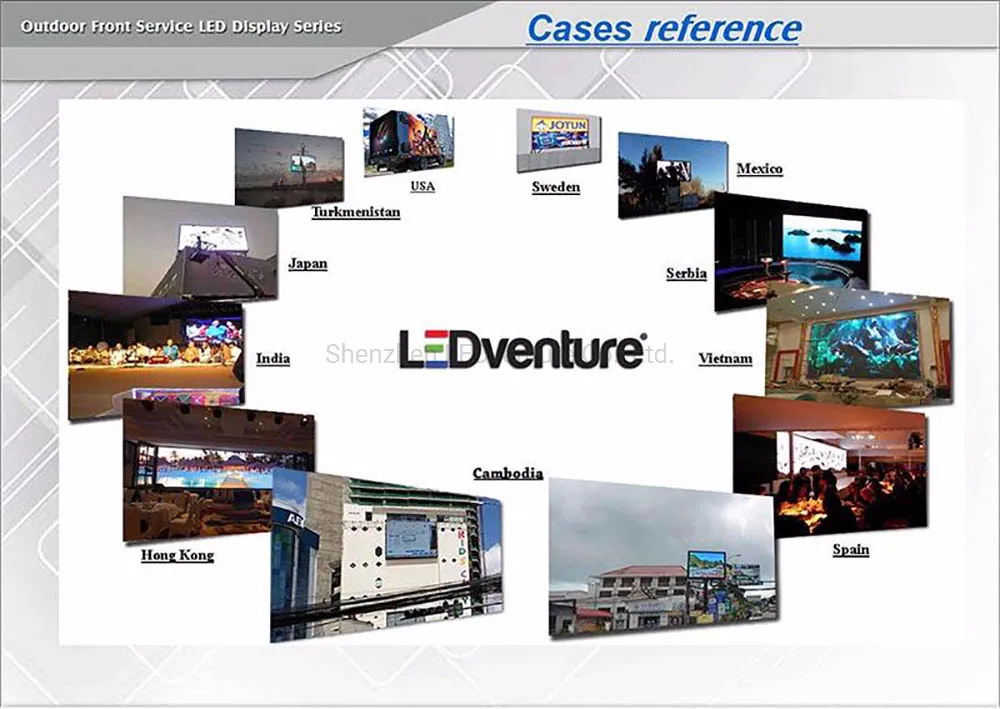

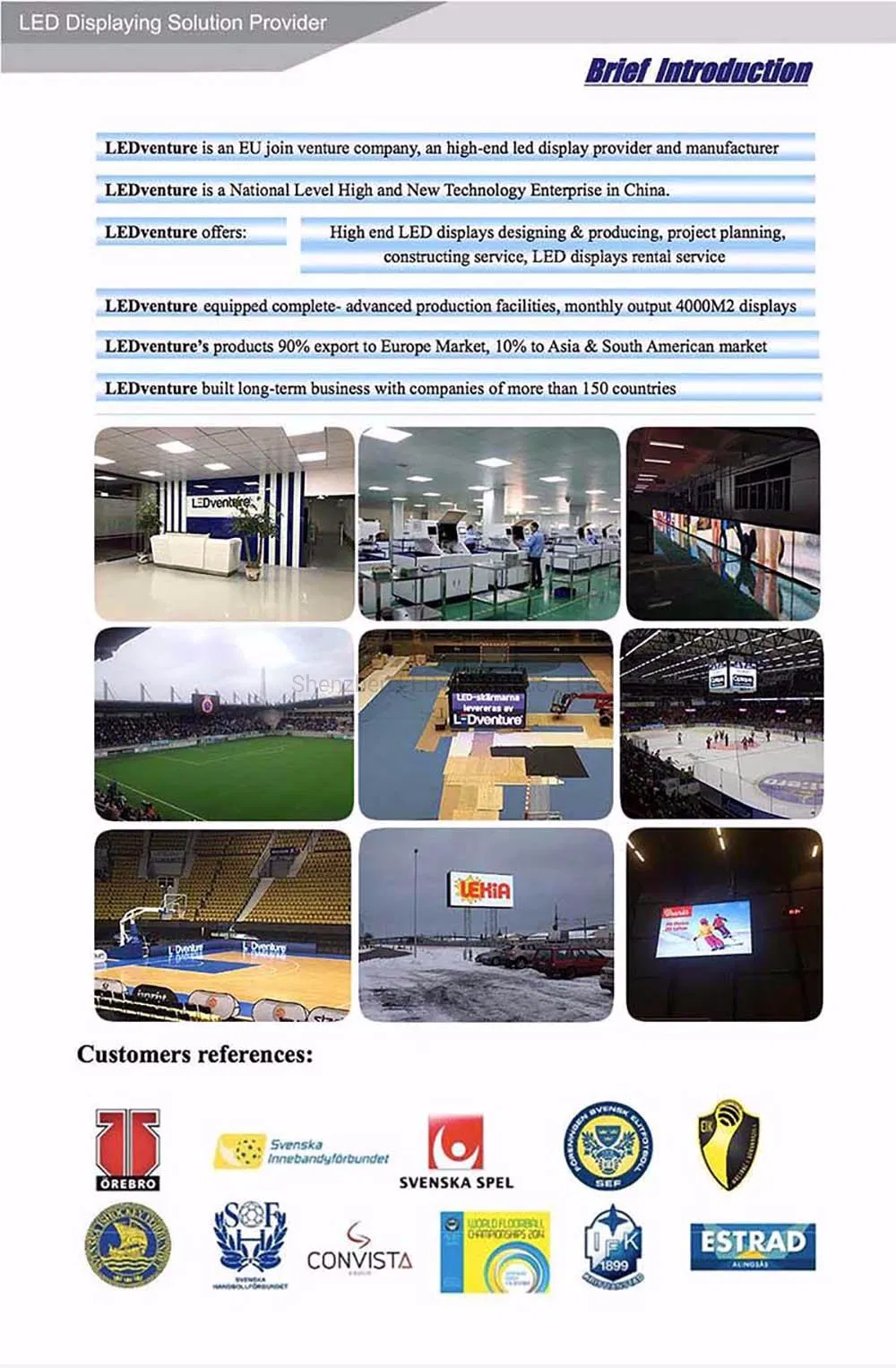

Our products pass CE, EMC, FCC, and UL testing to meet international safety and quality standards. We have a strong export presence in Europe, the USA, South America, and Asia.
