P4 Outdoor Advertising Stadium Slim Design for Perimeter Sport Electronic Scoreboard Pantallas LED 3D Cube Billboard Module Text Display Screen

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
SL-P4
Pixel Pitch
4mm
Pixel Configuration
1R, 1G, 1B (SMD 3 IN 1)
Display Function
Video, Image, Text, Market Display
Average Power
270W/M2
Pixel Density
62,500 - 65,536 DOT/M2
Scanning Mode
1/16 Scan
Certification
CE, RoHS, CCC, ETL, FCC
Brightness
800nits / 5500nits
Refresh Rate
>3840Hz
Contrast Rate
3000:1
Viewing Distance
4-10 Meters
Cabinet Size
960*960mm
Origin
China

Product Overview

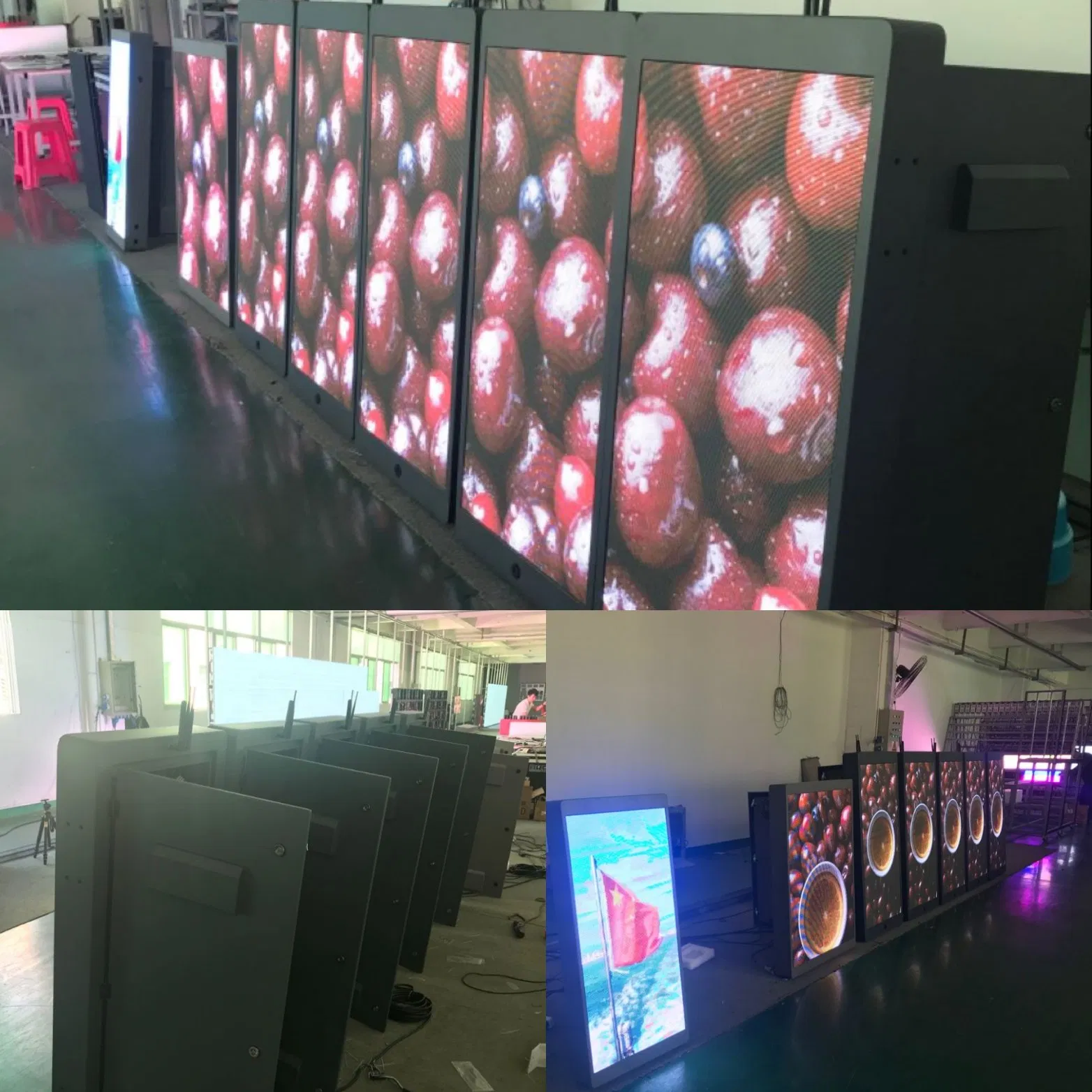

P4 Outdoor Advertising Stadium Slim Design for Perimeter Sport Electronic Scoreboard

This series focuses on high-performance LED display solutions including indoor/outdoor displays, rental units, flexible screens, and stadium perimeter systems. Specifically designed for 3D cube billboards, module text displays, and high-impact sports scoreboards.

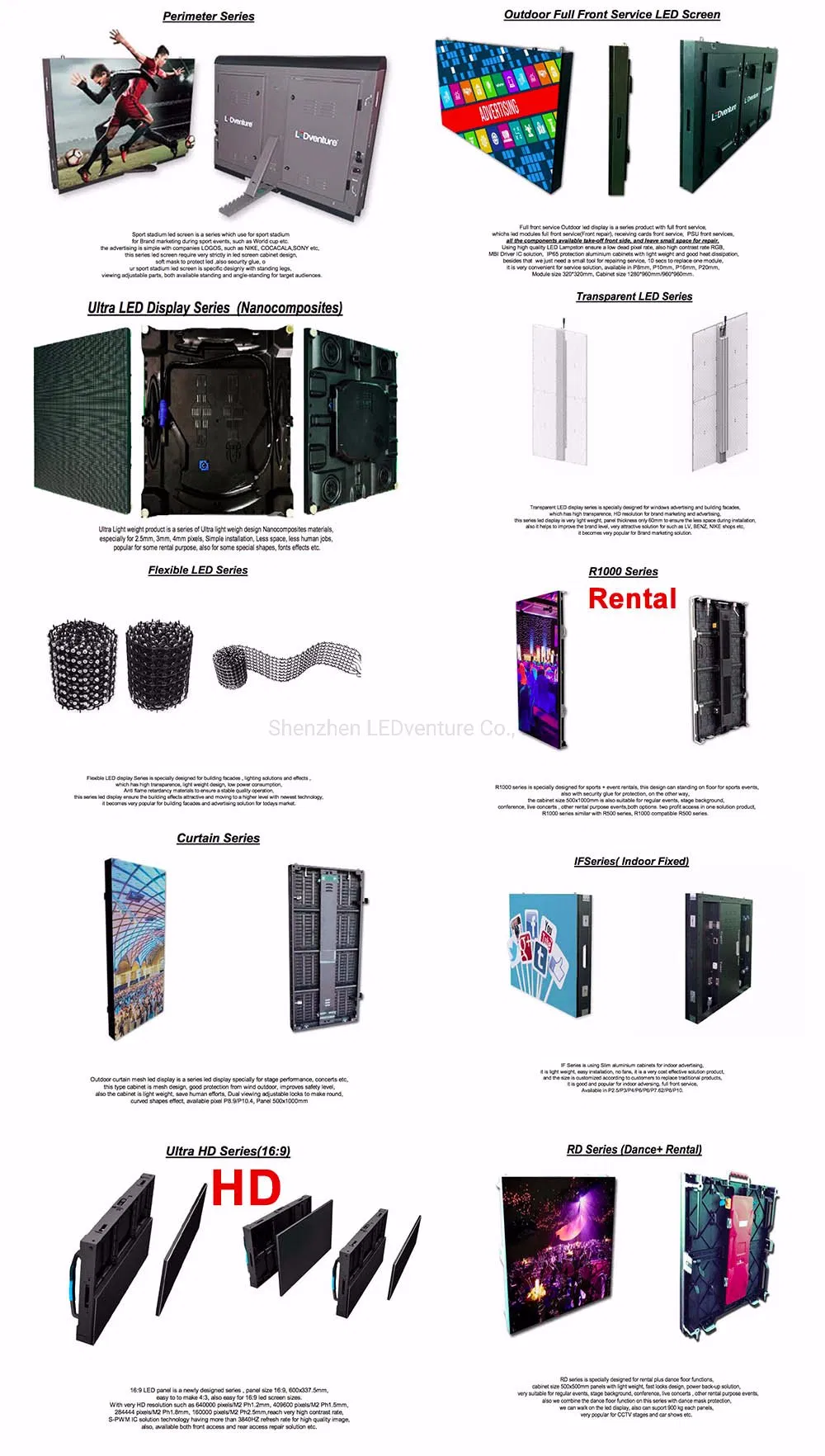

Outdoor HD LED Screen

Main Features

The P4 and P10 Outdoor HD LED Screen series are premium media solutions offering extreme cost-effectiveness. With high density resolution and simple installation, these cabinets are ideal for both indoor and outdoor media applications.

Pixel Pitch4mm to 10mm
Brightness800nits / 5500nits
Cabinet Size960x960mm (optional)
Max. Power270W/panel
Refresh Rate>3840HZ
Gray Scale16 bits

Product Detail Images

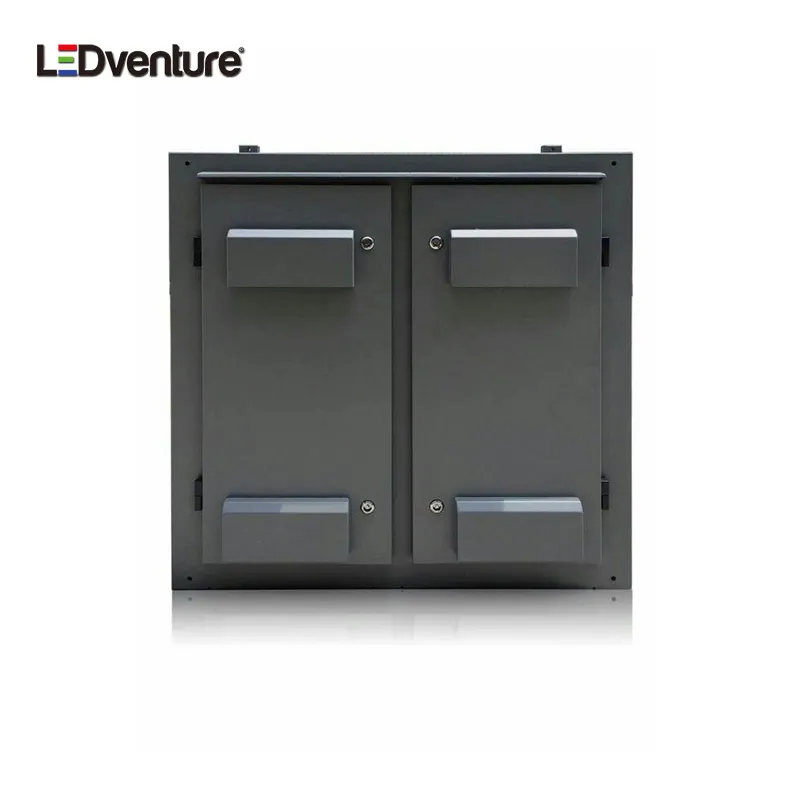

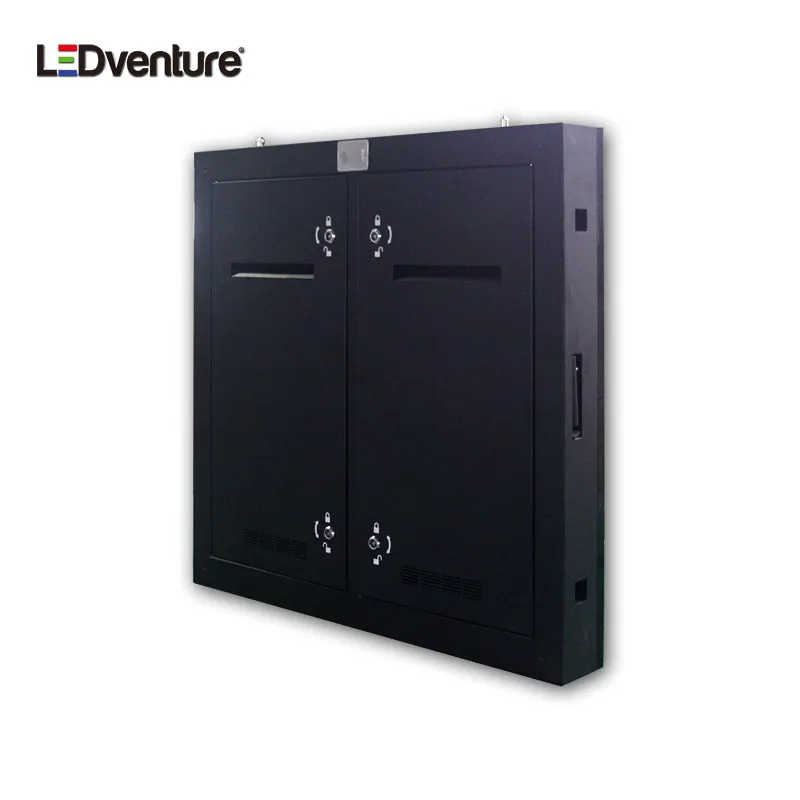

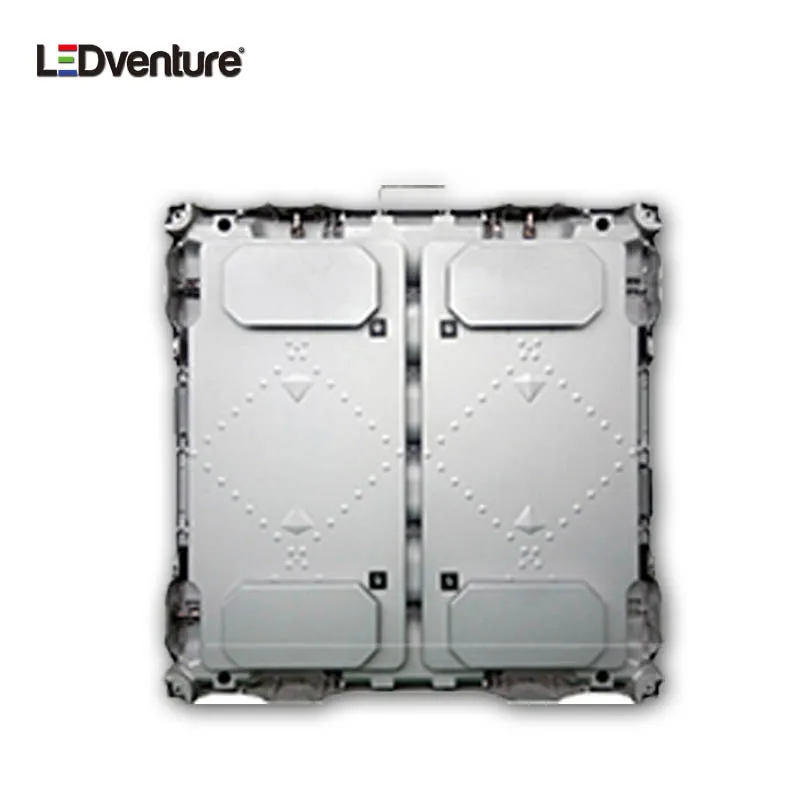

Detail 1 Detail 2 Detail 3

Material Quality Level

We utilize top-tier components including premium SMD LEDs, high-performance ICs, and reliable power supply brands. This ensures stability, longevity, and significantly reduced after-sales maintenance costs.

Material Quality Components Detail

Technical Specifications

ItemP4 Outdoor Slim Design Perimeter Screen
Module Size320x160mm
Module Resolution80*40 pixels
Viewing Angle≤140° (Horizontal/Vertical)
Protection LevelIP31 / IP64-IP43
Input VoltageAC110-240V, 50/60Hz
Lifespan≥100,000 hours
Blind Spot Rate<0.0001 (Industry Standard: <0.0003)
Control ModeVideo frequency synchronization

Installation & Applications

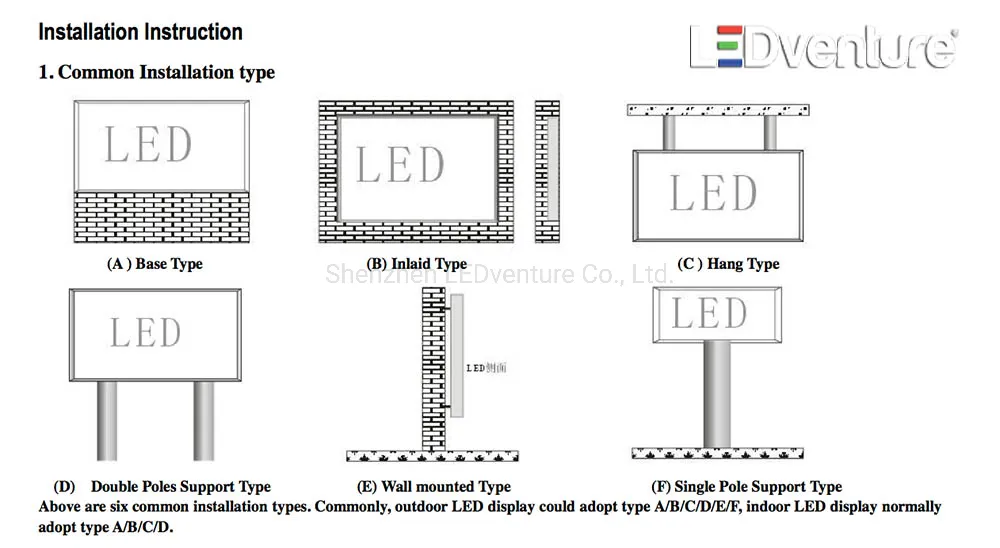

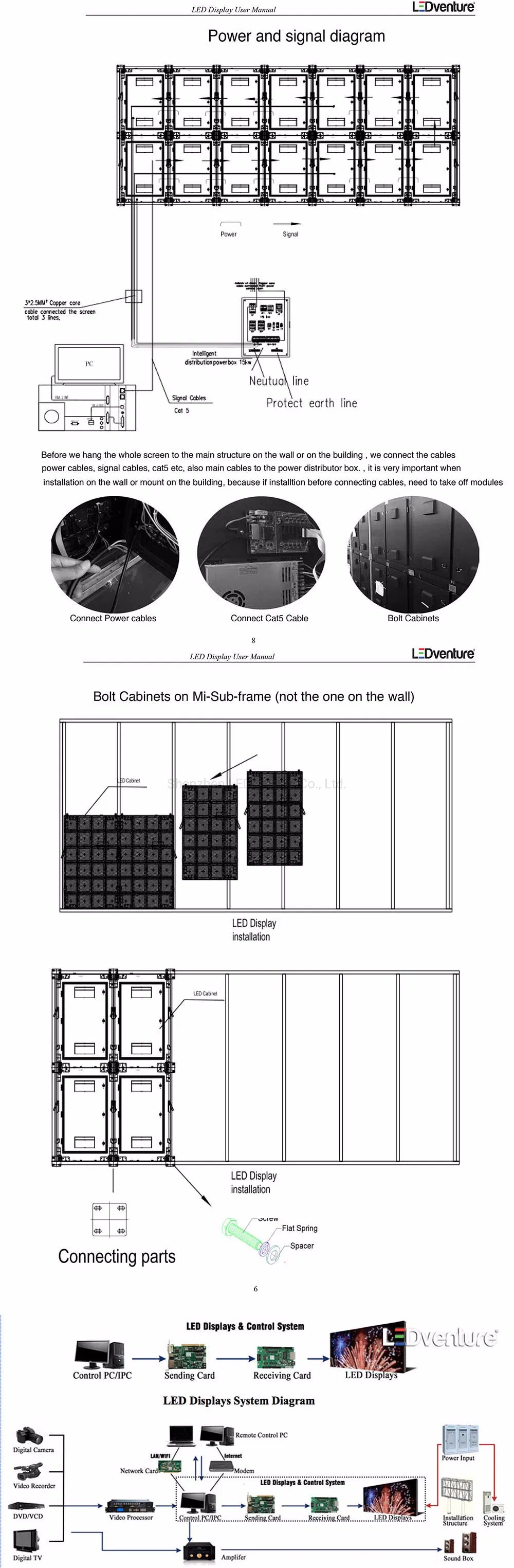

Versatile installation methods include wall-mounting, pillar support, and standing configurations. The system supports full hardware integration with sending boxes, processors, and receiving cards.

Installation Methods System Hardware

Packaging & Logistics

Products are securely packed in plywood cases designed for easy loading and maximum protection during international transport.

Packing Info

Certifications

All products have passed CE, EMC, FCC, and UL testing to ensure compliance with global safety and quality standards.

Certificates

Production & Global Cases

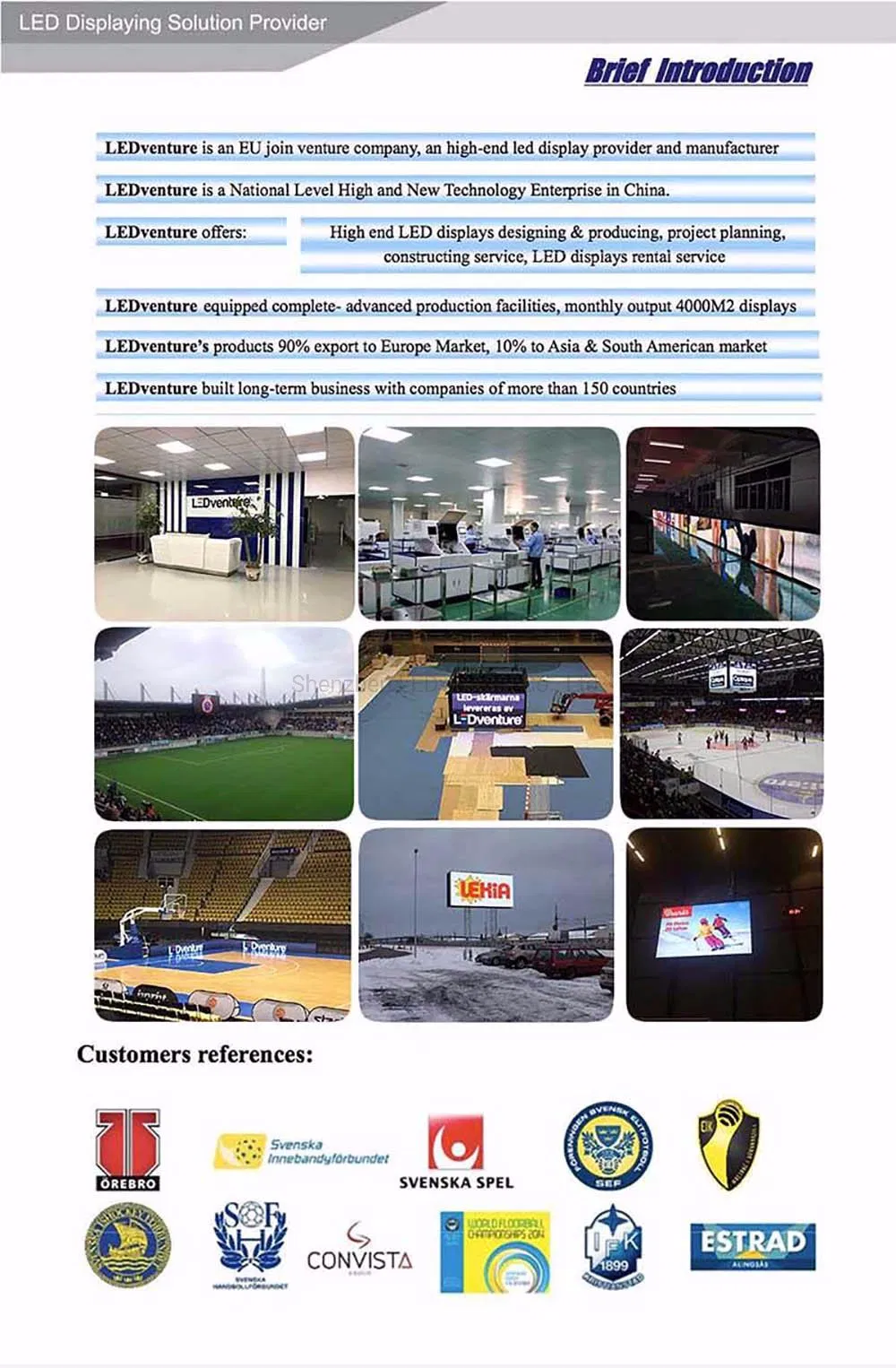

Production Line

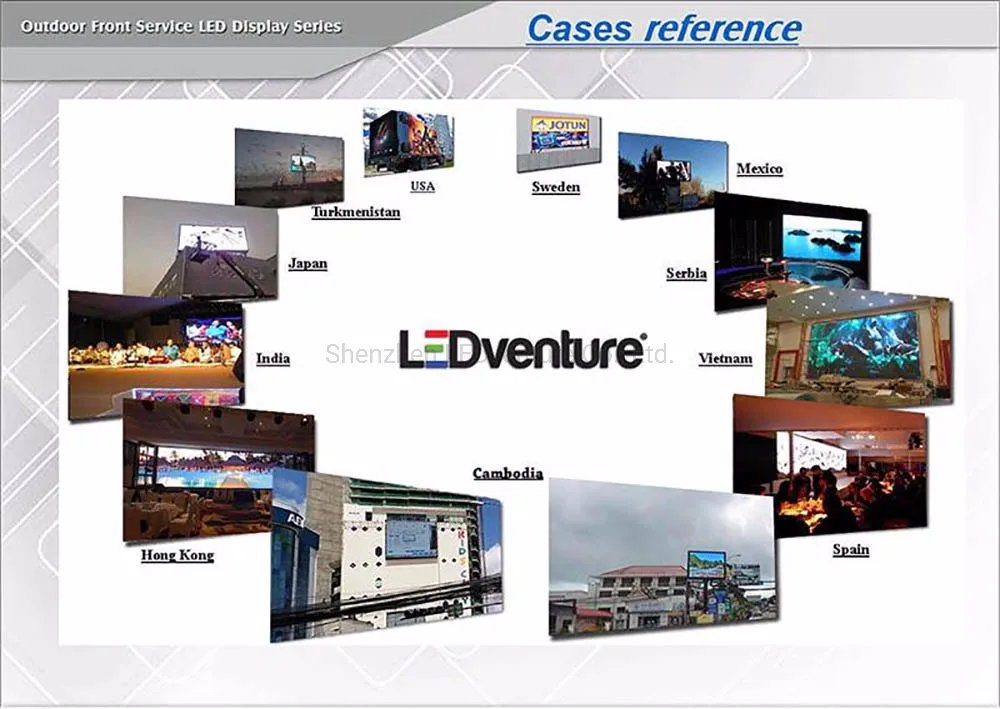

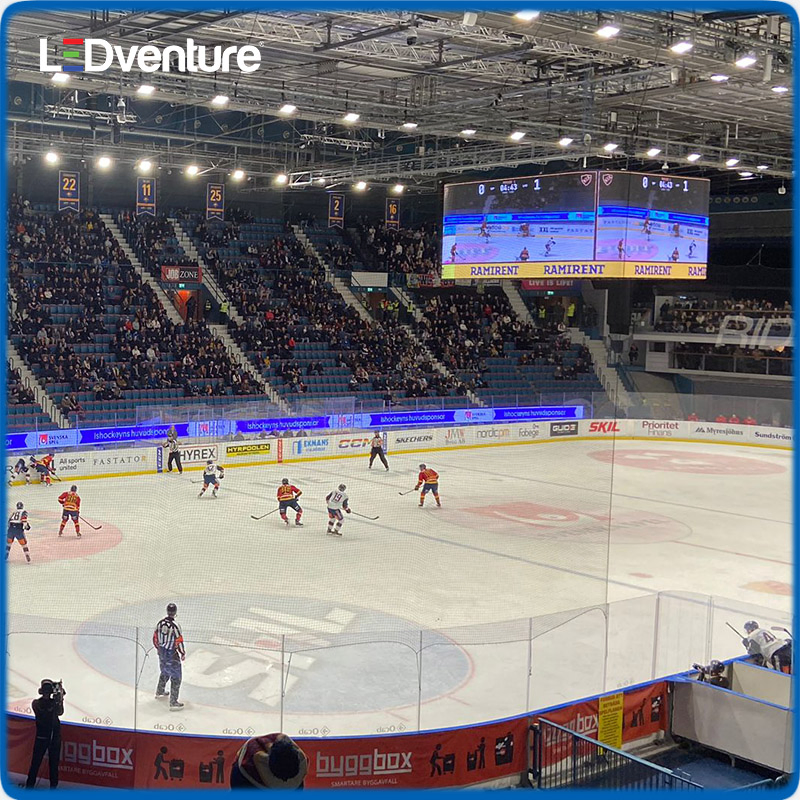

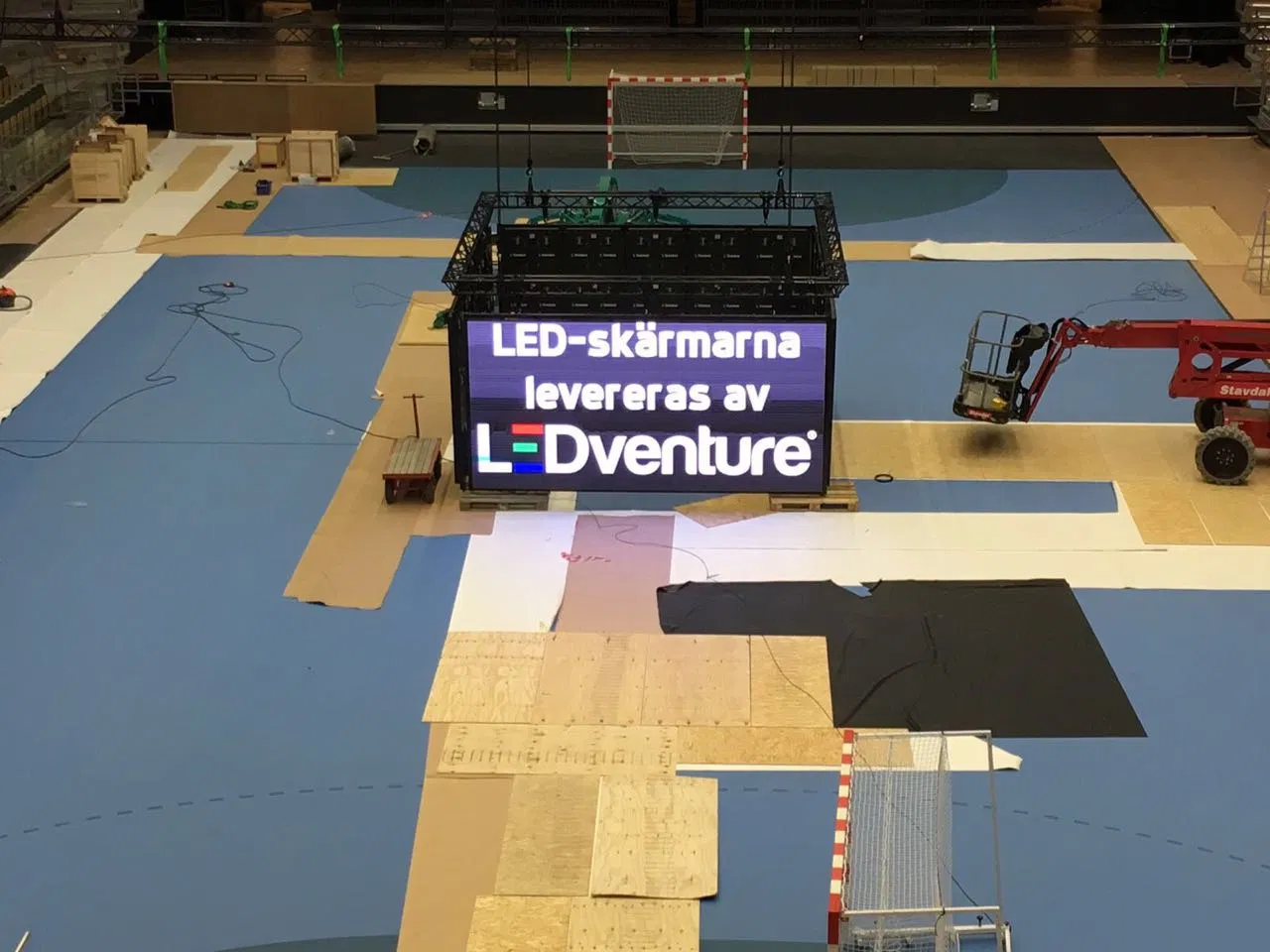

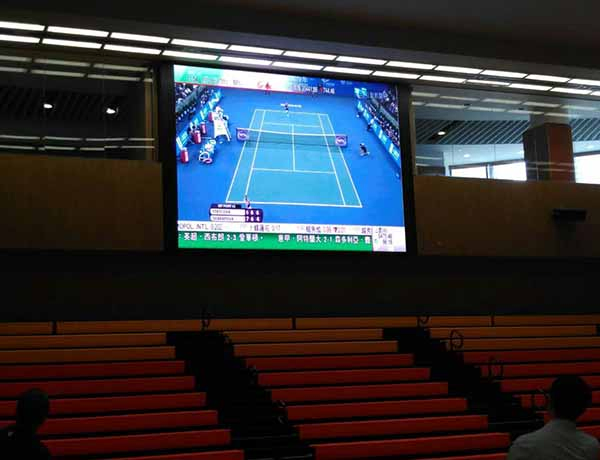

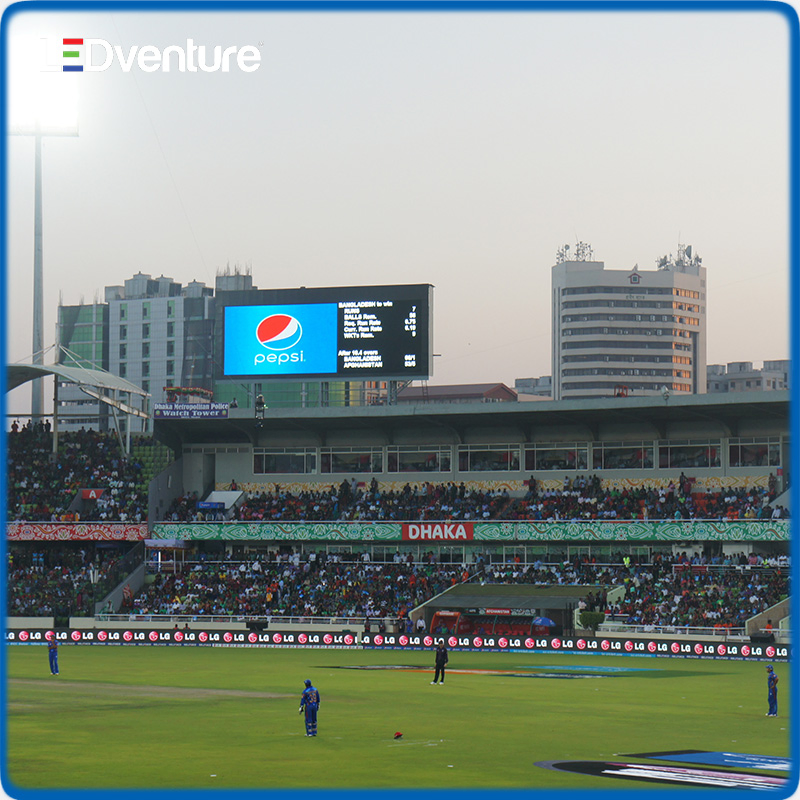

Installation Case 1 Installation Case 2

Frequently Asked Questions

What is the optimal viewing distance for the P4 LED screen?
The minimum viewing distance is approximately 4 meters, with an effective range of 4 to 10 meters, making it ideal for stadium perimeters and outdoor advertising.
Can this screen be used in bright daylight?
Yes, the screen features high-brightness options up to 5500 nits, ensuring clear visibility even under direct sunlight.
What is the lifespan of these LED panels?
Our LED displays are built using top-quality materials and are rated for a lifespan of ≥100,000 hours.
Does the display support high-speed video content?
Absolutely. With a refresh rate of over 3840Hz, it provides smooth, flicker-free video playback suitable for sports and live broadcasting.
What kind of protection does the screen have against weather?
The product features an IP-rated design (IP64/IP43) to protect against dust and water, making it suitable for outdoor environments.
How is the content managed on the screen?
The system uses video frequency synchronization through sending and receiving cards, compatible with standard control systems like Nova.
